Adaptall Din X Male Metric W/Es Seal 5068S-30-42

Specifications

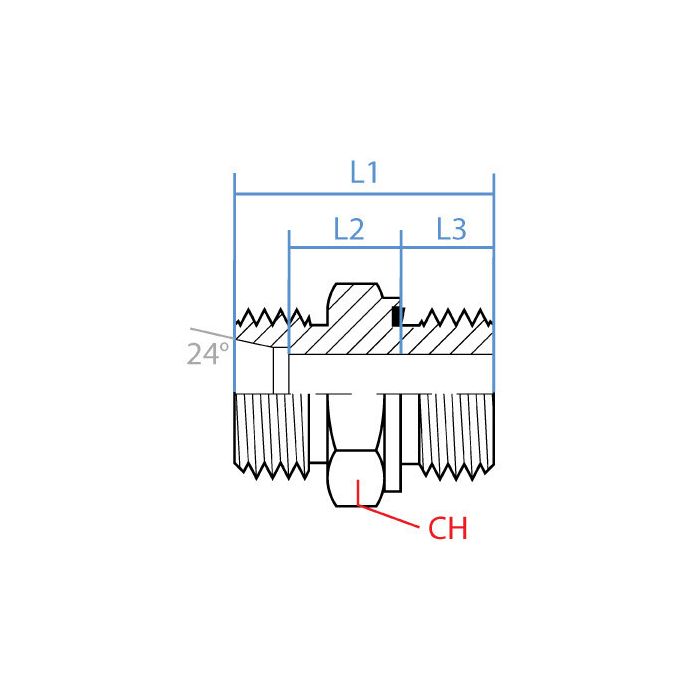

CH Width 50mm	L1 Length 57mm	L2 Length 23.5mm	L3 Length 20mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M42 X 2.0	Side 1 Gender M	Side 1 Size S30	Side 1 Type Din Tube	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size 42mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068S-30-42	Product Weight 0.94 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of pressures can this steel adapter handle? I'm hooking it up to a hydraulic system that runs pretty hard.

Question by: Billy K on Jan 4, 2026, 4:49 PM

This adapter is built tough from steel, so it'll hold up in demanding industrial environments. Just be sure your system pressures are within the standard range for steel hydraulic fittings of this size; those ratings aren't listed here, so double check your equipment specs to be sure!

Answer by: Customer Support on Jan 6, 2026, 7:35 AM

Got a system running M42 x 2.0 fittings on both ends, does this adapter actually connect two metric sides together or is one end a different thread standard?

Question by: Brenda J on Jan 10, 2026, 8:53 PM

Both sides on this one are M42 x 2.0, so you're working with matching thread specs end to end. Side 1 is a DIN tube connection and Side 2 is a standard metric connection, both male. So it's bridging a DIN tube fitting to a metric port, not two identical connection types. Worth noting before you go to put it in.

Answer by: Customer Support on Jan 12, 2026, 1:49 PM

Trying to replace an old adapter, is this one male on both ends and M42 x 2.0 on each side?

Question by: Todd J on Jan 14, 2026, 8:23 AM

Fit wise, it is a straight steel adapter with male connections on both sides, and both ends are called out as M42 x 2.0. Side 1 is a DIN tube connection in size S30, and Side 2 is a metric male in 42 mm.

Answer by: Customer Support on Jan 16, 2026, 6:51 AM
