90* Mjic-Fem Metric Soft Seal 9199-24-L42-52

Specifications

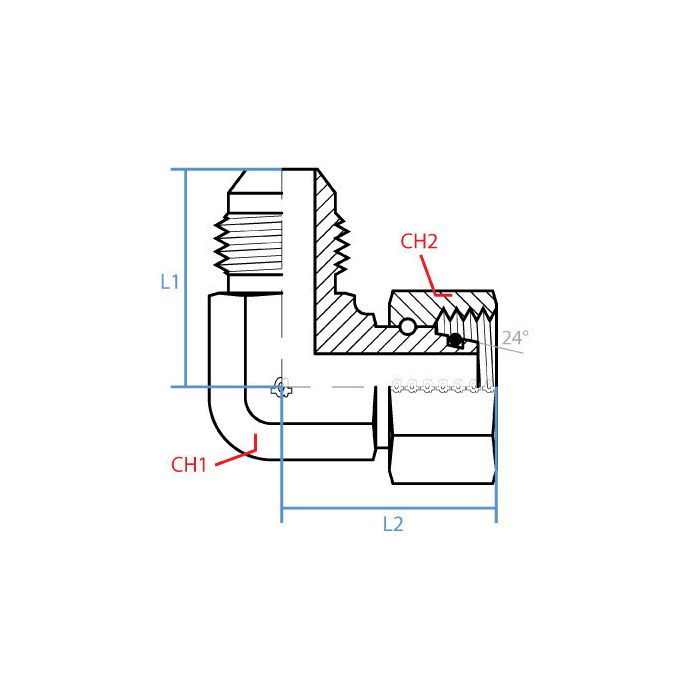

CH1 Width 48mm	CH2 Width 60mm	L1 Length 56mm	L2 Length 59mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender F	Side 2 Size L42	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-24-L42-52	Product Weight 2.35 lbs

Product Questions & Answers 2

Product Questions & Answers

So this thing's got a bend in it, right? Just making sure I'm picturing it correct.

Question by: Clint H on Mar 18, 2026, 6:35 PM

That's right, this adapter is configured as a 90-degree elbow.

Answer by: Customer Support on Mar 20, 2026, 6:35 AM

Got a tight spot on a piece of equipment where running a straight adapter just ain't gonna cut it, would this elbow work to tie in a 1-1/2" JIC male fitting to a metric DIN port without having to reroute a bunch of line?

Question by: Dustin W on May 5, 2025, 11:46 AM

That's exactly the kind of situation this fitting is built for. One end is a 1-1/2" Male JIC with a 1-7/8-12 UN thread, and the other is a Female DIN Tube port running M52 x 2.0. The 90-degree elbow geometry lets you make that connection in confined spaces where a straight adapter would force you into awkward bends or extra line length. Overall it measures 56mm on L1 and 59mm on L2, so it stays pretty compact even with the elbow shape.

Answer by: Customer Support on May 7, 2025, 6:25 AM
