90* Mjic-Fem Metric Soft Seal

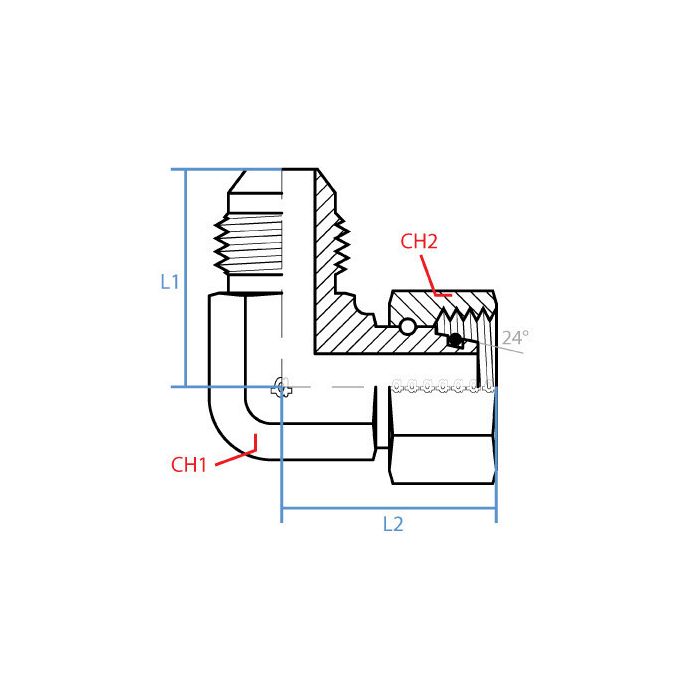

CH1 Width 41mm	CH2 Width 50mm	L1 Length 54.2mm	L2 Length 52.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M42 X 2.0	Side 2 Gender F	Side 2 Size S30	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-20-S30-42	Product Weight 1.71 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running 1-1/4 JIC male on one end and need to tie into a metric DIN tube port, S30 size with M42 x 2.0 thread, this elbow gonna work for that?

Question by: Curt C on May 13, 2025, 2:30 PM

That's what this fitting covers. One side is a 1-1/4" male JIC with a 1-5/8-12 UN thread, and the other is a female DIN tube connection sized S30 with M42 x 2.0 thread. The 90-degree elbow shape also gives you some routing flexibility if you're working in a tight spot or need to change direction coming off that port.

Answer by: Customer Support on May 14, 2025, 4:54 PM
