90* Mjic-Fem Metric Soft Seal 9199-20-L35-45

Specifications

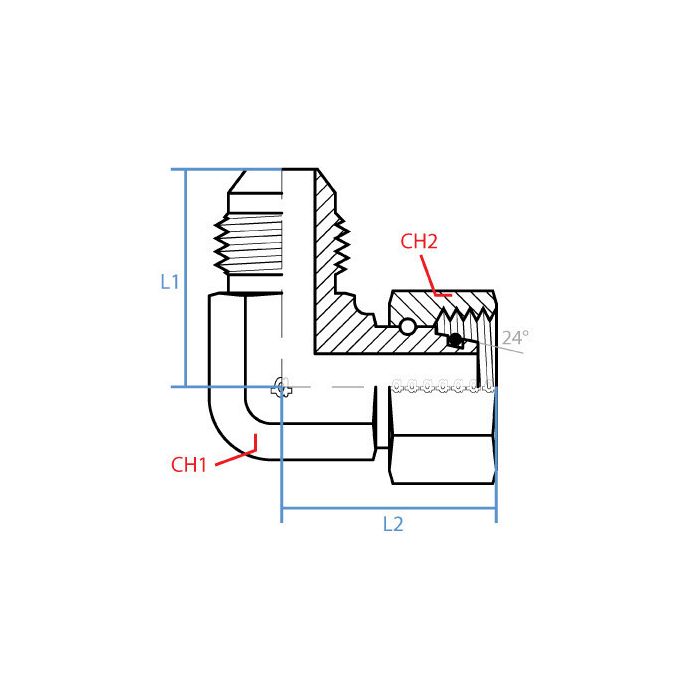

CH1 Width 41mm	CH2 Width 50mm	L1 Length 51.5mm	L2 Length 52mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M45 X 2.0	Side 2 Gender F	Side 2 Size L35	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-20-L35-45	Product Weight 1.54 lbs

Product Questions & Answers 3

Product Questions & Answers

fitting's got a 1-1/4" JIC side and I need to tie into a DIN metric tube connection, is this the right elbow to be looking at?

Question by: Kirk H on May 27, 2025, 11:03 AM

For that exact combination, yes. Side 1 is a 1-1/4" male JIC thread running 1-5/8 - 12 UN, and Side 2 is a female DIN tube connection at M45 X 2.0. The 90 degree elbow shape lets you change direction right at the junction, which comes in real handy when you're routing lines in tight quarters. The soft seal on the DIN side handles leak prevention in high-pressure hydraulic setups, so you're not relying on metal-to-metal contact alone to keep things tight.

Answer by: Customer Support on May 28, 2025, 2:20 PM

Will this fitting hold up in a hydraulic system that runs pretty hot?

Question by: Stan R on May 8, 2025, 3:54 PM

Designed for robust industrial applications, this fitting ensures a secure, leak-proof connection even in high-pressure environments, helping maintain the integrity of your hydraulic system.

Answer by: Customer Support on May 10, 2025, 1:28 PM

trying to hook a JIC hose up to a DIN tube port and need a 90, is this the right kind of adapter?

Question by: Ronnie R on May 9, 2025, 7:23 PM

For that setup, this fitting is a 90° elbow that adapts a male JIC end to a female DIN tube connection. Side 1 is male JIC, 1-5/8 - 12 UN (size 1-1/4 inch), and Side 2 is female DIN tube M45 x 2.0 (size L35) with a soft seal to help prevent leaks.

Answer by: Customer Support on May 10, 2025, 8:44 PM
