90* Mjic-Fem Metric Soft Seal

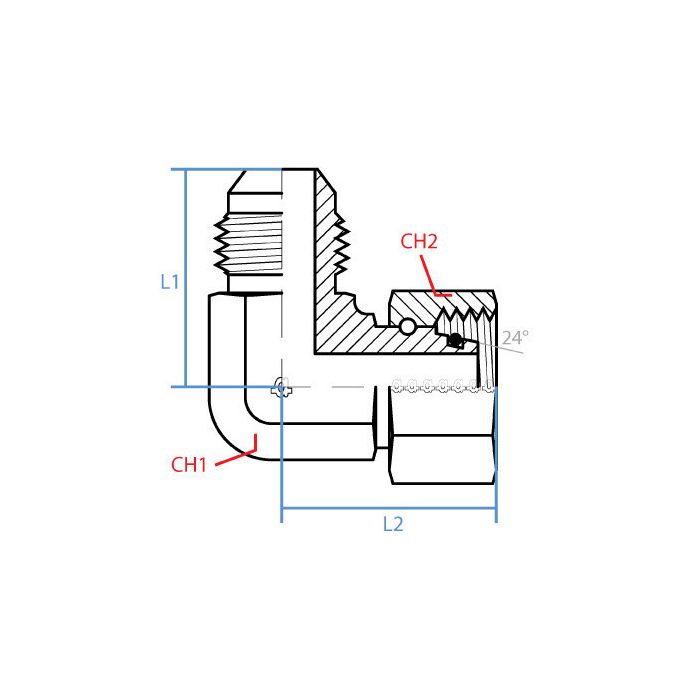

CH1 Width 33mm	CH2 Width 46mm	L1 Length 50mm	L2 Length 46mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-16-S25-36	Product Weight 1.31 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap a hose end over, will this elbow go from 1 inch JIC male to an S25 metric female (M36 x 2.0)

Question by: Janice G on Dec 28, 2025, 11:57 AM

For a straight fit check, it matches a 1 inch JIC male thread (1-5/16 - 12 UN) on one side and an S25 DIN tube female with M36 x 2.0 threads on the other, and it is a 90 degree elbow.

Answer by: Customer Support on Dec 29, 2025, 2:46 PM

Is this elbow fitting made out of steel?

Question by: Pete H on Apr 18, 2025, 8:32 PM

Yes, this 90° elbow fitting is constructed from steel, which ensures its durability in demanding applications.

Answer by: Customer Support on Apr 20, 2025, 6:37 AM
