90* Mjic-Fem Metric Soft Seal

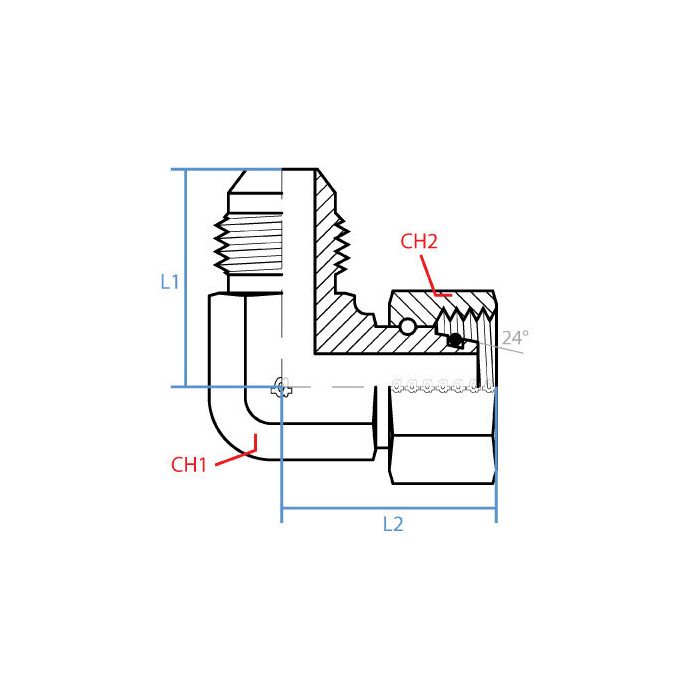

CH1 Width 33mm	CH2 Width 41mm	L1 Length 42.7mm	L2 Length 46mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size L28	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022599, Alternate Part Number MINO-03671X00408	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-16-L28-36	Product Weight 0.94 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got a 1-5/16-12 UN on one end and i need to hook into an M36 x 2.0 metric port, this the right piece for that?

Question by: Ross R on Aug 17, 2025, 1:14 PM

That's what this fitting is built to do. One side is a male JIC at 1-5/16-12 UN and the other is a female DIN Tube metric connection at M36 x 2.0. The 90 degree elbow shape lets you make that transition while also redirecting your line, which comes in real handy when you're working in tight quarters or need to avoid a straight-run interference.

Answer by: Customer Support on Aug 18, 2025, 3:36 PM
