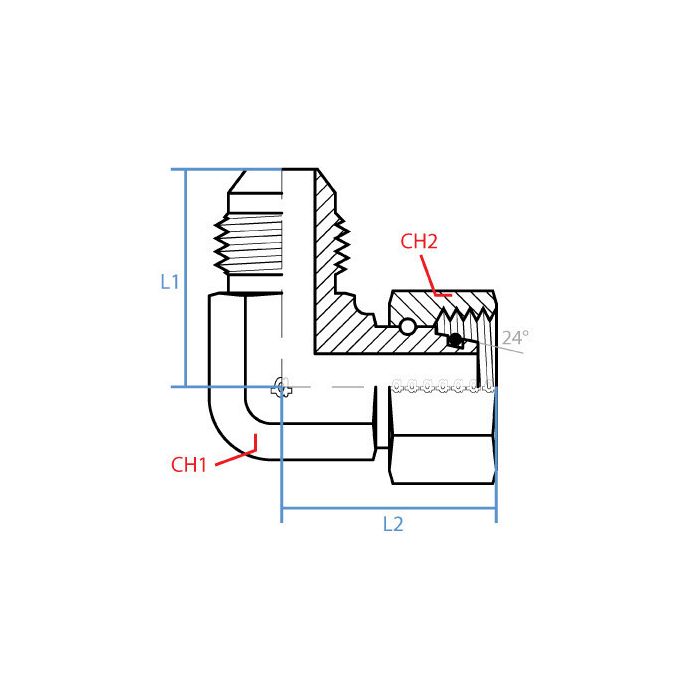

90* Mjic-Fem Metric Soft Seal

CH1 Width
33mm
CH2 Width
36mm
L1 Length
39.7mm
L2 Length
46mm
Adaptall Material
Steel
Adaptall Shape
90° Elbow
Side 1 Callout
1-5/16 - 12 UN
Side 1 Gender
M
Side 1 Size
1"
Side 1 Type
Jic
Side 2 Callout
M30 X 2.0
Side 2 Gender
F
Side 2 Size
L22
Side 2 Type
Din Tube
Alternate Part Numbers
Alternate Part Number MI-08022598, Alternate Part Number MINO-03671X00407
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9199-16-L22-30
Product Weight
0.93 lbs

Product Questions & Answers

What's the deal with the angles on this thing? Is it a full 90 degrees?
Question by: Daryl R on Jul 31, 2025, 5:36 PM
It is a 90-degree elbow fitting, designed for hydraulic setups needing a turn.
Answer by: Customer Support on Aug 1, 2025, 6:58 PM
