90* Mjic-Fem Metric Soft Seal 9199-12-S20-30

Specifications

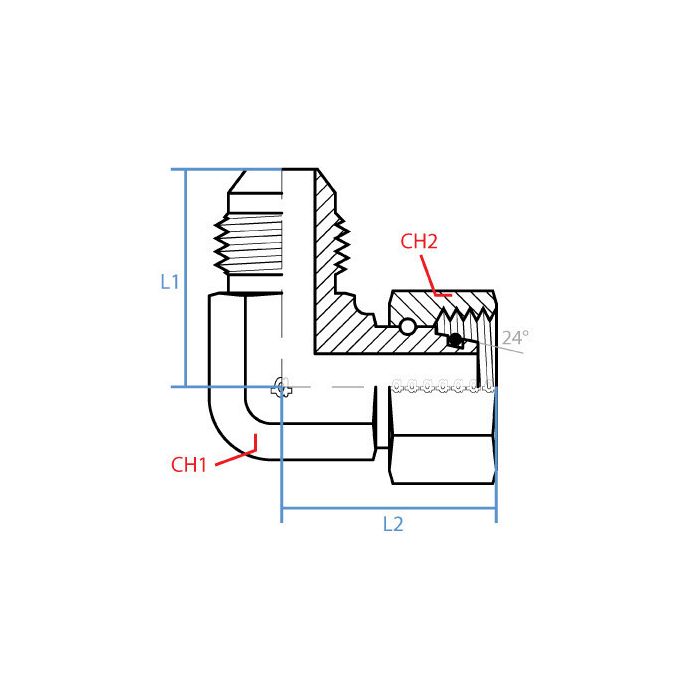

CH1 Width 27mm	CH2 Width 36mm	L1 Length 43.8mm	L2 Length 42.2mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size S20	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022597, Alternate Part Number MINO-03671X00406	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-12-S20-30	Product Weight 0.76 lbs

Product Questions & Answers 2

Product Questions & Answers

What kind of hydraulic setups does this elbow fitting work best with, seeing as it's got both JIC and DIN connections?

Question by: Peggy C on Aug 1, 2025, 7:24 PM

Providing versatility, this 90-degree elbow is particularly useful when you need to connect a 1-1/16 - 12 UN male JIC to an M30 X 2.0 female DIN tube connection.

Answer by: Customer Support on Aug 3, 2025, 6:22 AM

Got a hydraulic line coming off a pump with a 3/4" JIC male end and the other side needs to tie into an M30 x 2.0 female DIN metric port. This fitting handle that kind of crossover?

Question by: Dale P on Jul 10, 2025, 5:22 PM

That matchup is exactly what this fitting covers. Side one is a 1-1/16-12 UN male JIC connection, which is the standard thread for a 3/4" JIC line, and side two is an M30 x 2.0 female DIN tube port. The 90 degree elbow shape also helps when you're working in a tight routing situation and need to make a direction change right at the connection point.

Answer by: Customer Support on Jul 12, 2025, 7:06 AM
