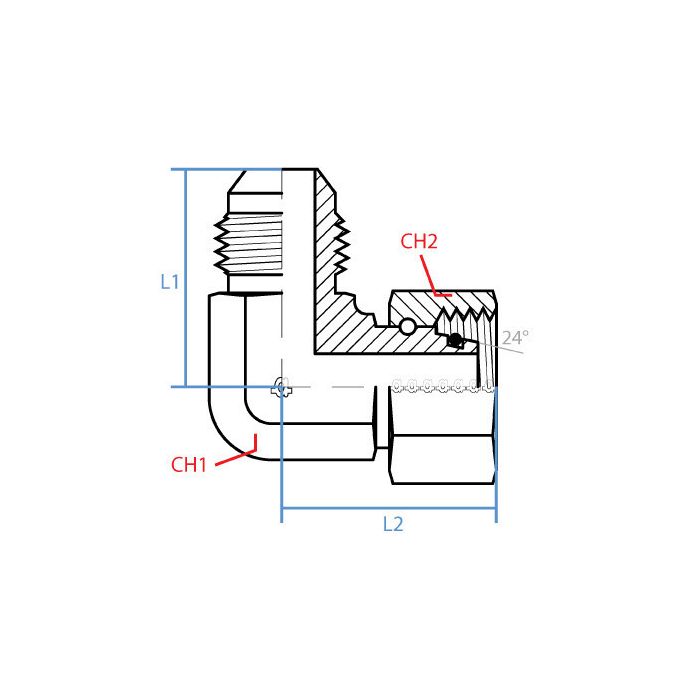

90* Mjic-Fem Metric Soft Seal

CH1 Width
27mm
CH2 Width
32mm
L1 Length
37.8mm
L2 Length
42.2mm
Adaptall Material
Steel
Adaptall Shape
90° Elbow
Side 1 Callout
1-1/16 - 12 UN
Side 1 Gender
M
Side 1 Size
3/4"
Side 1 Type
Jic
Side 2 Callout
M26 X 1.5
Side 2 Gender
F
Side 2 Size
L18
Side 2 Type
Din Tube
Alternate Part Numbers
Alternate Part Number MI-08022596, Alternate Part Number MINO-03671X00405
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9199-12-L18-26
Product Weight
0.63 lbs

Product Questions & Answers

Will this fitting hold up alright for hydraulic fluid?
Question by: Clint C on Jun 7, 2025, 8:30 PM
This 90-degree elbow fitting is made from steel, so it should be compatible with most common hydraulic fluids.
Answer by: Customer Support on Jun 9, 2025, 8:53 AM
what's the thread setup on both ends of this fitting? trying to figure out if it'll work with my JIC line going into a metric port
Question by: Brenda C on May 3, 2025, 12:34 PM
One end is a 3/4" JIC male with a 1-1/16-12 UN thread, and the other is a female metric DIN tube port sized at M26 x 1.5, which corresponds to an L18 designation. So yeah, it bridges a standard JIC hydraulic line over to a metric DIN tube connection, all in a 90-degree elbow configuration. Steel construction throughout.
Answer by: Customer Support on May 5, 2025, 6:44 AM
