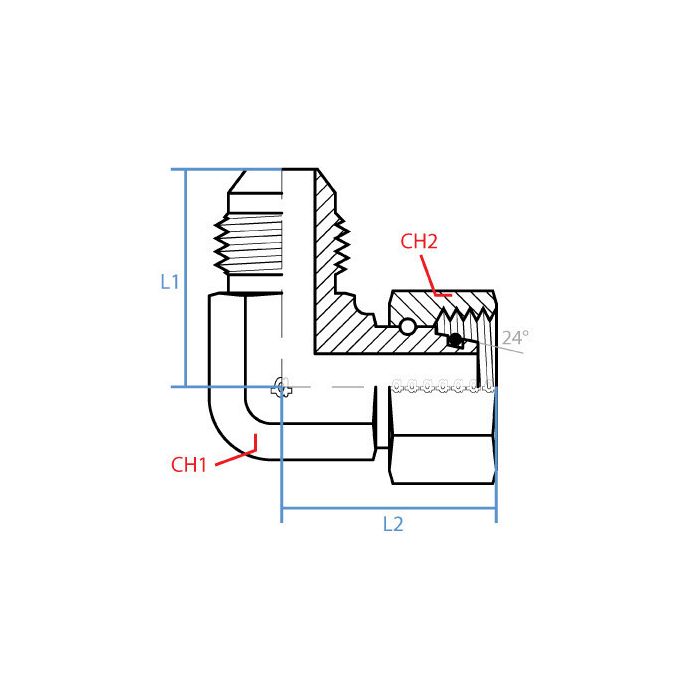

90* Mjic-Fem Metric Soft Seal

CH1 Width 22mm	CH2 Width 30mm	L1 Length 36.4mm	L2 Length 36.8mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022595, Alternate Part Number MINO-03671X00404	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-10-S16-24	Product Weight 0.46 lbs

Product Questions & Answers

What size is that JIC fitting on this elbow?

Question by: Ralph W on Sep 24, 2025, 2:11 PM

The JIC side of this elbow is a 5/8 inch, 7/8 - 14 UNF male fitting.

Answer by: Customer Support on Sep 25, 2025, 6:19 PM
