90* Mjic-Fem Metric Soft Seal 9199-10-L15-22

Specifications

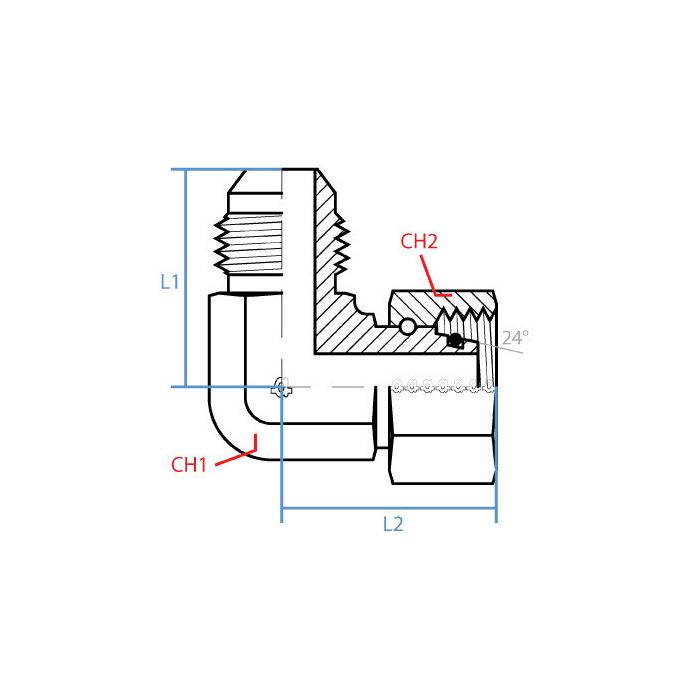

CH1 Width 22mm	CH2 Width 27mm	L1 Length 34.3mm	L2 Length 36.8mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07178056, Alternate Part Number MINO-03671X36889	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-10-L15-22	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting work to connect a 7/8-14 UNF male JIC to a M22 x 1.5 female DIN?

Question by: Vince H on Apr 6, 2025, 3:11 PM

That's what this Adaptall adapter is designed for: connecting a 7/8 - 14 UNF male JIC fitting to an M22 x 1.5 female DIN tube fitting.

Answer by: Customer Support on Apr 8, 2025, 6:42 AM

got a machine running 5/8 JIC lines that feeds into metric fittings and the 90 degree turn would clean up the routing real nice. this the right piece for that?

Question by: Earl W on May 4, 2025, 6:26 AM

For a 5/8 JIC male side connecting to an M22 x 1.5 female DIN tube fitting, yes, that's exactly what this adapter covers. The 90 degree elbow shape lets you redirect the line without adding extra fittings or forcing a bend in the hose, which keeps things tighter and cleaner in tight routing situations. It's steel construction, so it holds up in standard industrial hydraulic environments without much fuss.

Answer by: Customer Support on May 6, 2025, 6:50 AM
