90* Mjic-Fem Metric Soft Seal 9199-08-S12-20

Specifications

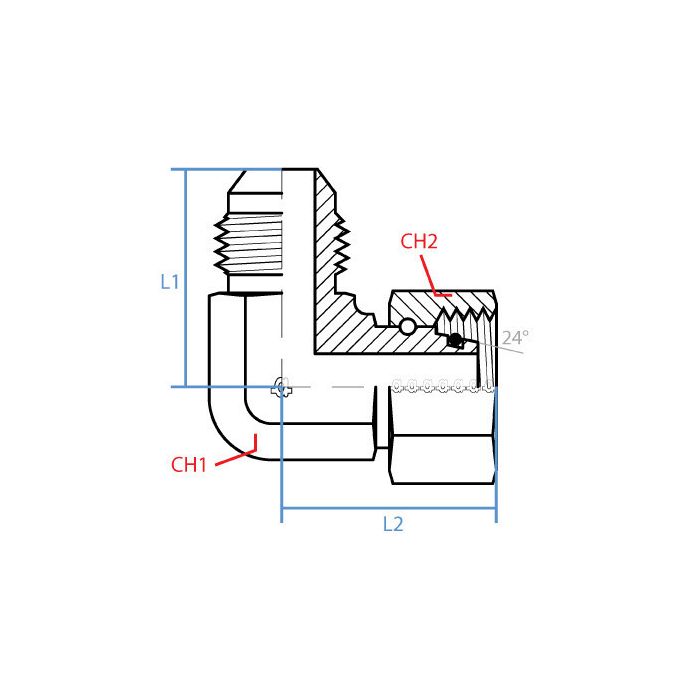

CH1 Width 19mm	CH2 Width 24mm	L1 Length 33.2mm	L2 Length 31.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022594, Alternate Part Number MINO-03671X00403	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-08-S12-20	Product Weight 0.28 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system with moderate pressure spikes?

Question by: Earl H on Oct 8, 2025, 9:05 PM

This 90-degree elbow adapter is constructed from steel, providing a robust and secure connection suitable for industrial applications where durability and efficient connections are needed.

Answer by: Customer Support on Oct 10, 2025, 10:52 AM

Got a hydraulic line running M20 x 1.5 DIN tube on one end and need to tie into a 3/4-16 UNF JIC fitting on the other. This the right adapter for that?

Question by: Lynn R on Feb 13, 2026, 10:49 AM

That's what this one's built for. One end is a male JIC 3/4-16 UNF connection and the other is a female M20 x 1.5 DIN tube. The 90 degree elbow shape lets you make that turn right at the fitting, which keeps things cleaner than trying to bend the line itself. It's steel construction, so it holds up in working hydraulic environments without any fuss.

Answer by: Customer Support on Feb 15, 2026, 8:54 AM
