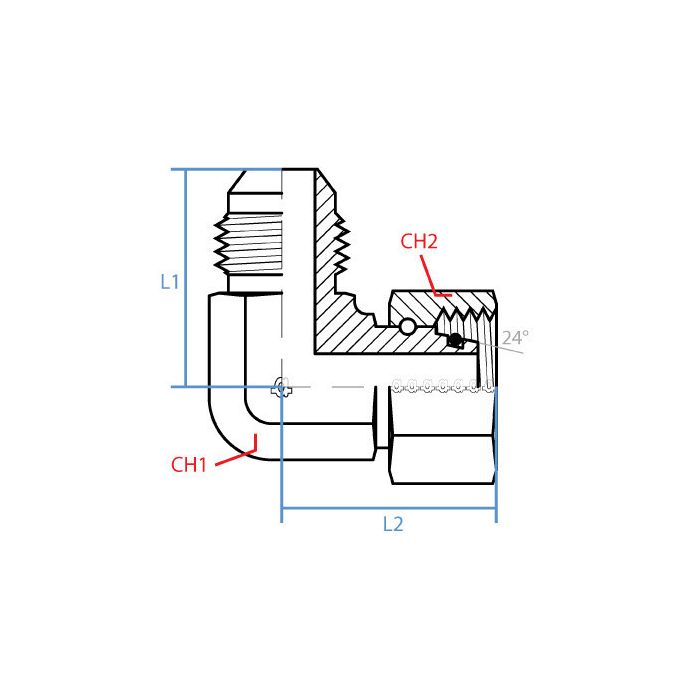

90* Mjic-Fem Metric Soft Seal

CH1 Width 19mm	CH2 Width 22mm	L1 Length 31mm	L2 Length 31.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022592, Alternate Part Number MINO-03671X00402	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-08-L12-18	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this fitting hold up alright in a hydraulic system that sees some pretty high pressure?

Question by: Todd E on Jan 1, 2026, 7:07 AM

Constructed from steel, this fitting is designed to handle high-pressure environments commonly found in industrial hydraulic systems. Its robust build should provide reliable performance.

Answer by: Customer Support on Jan 2, 2026, 10:53 AM
