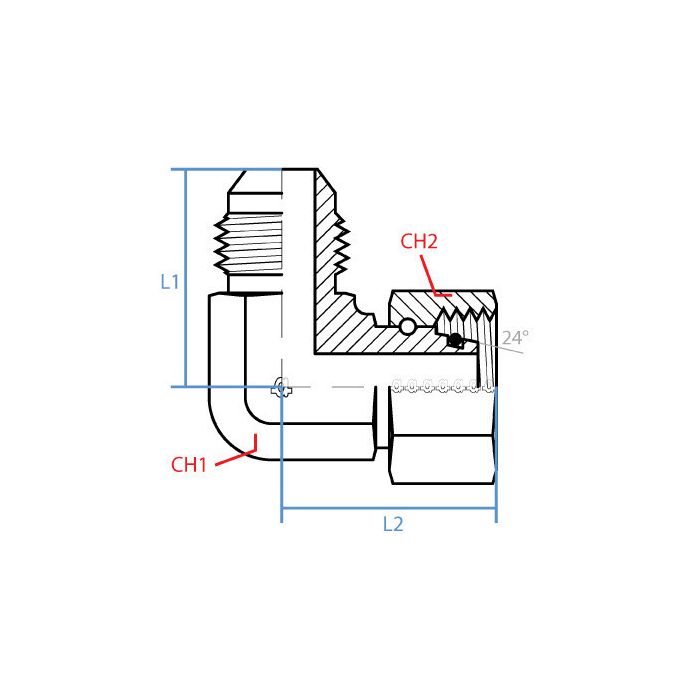

90* Mjic-Fem Metric Soft Seal

CH1 Width 14mm	CH2 Width 22mm	L1 Length 29.4mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size S10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022270, Alternate Part Number MINO-03671X87451	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-06-S10-18	Product Weight 0.18 lbs

Product Questions & Answers

Will this fitting work with a standard metric tube?

Question by: Neal F on Jul 25, 2025, 9:15 AM

This 90-degree elbow adapter is designed to connect a 9/16 - 18 UNF JIC fitting to an M18 X 1.5 DIN tube, which is a type of metric tube connection.

Answer by: Customer Support on Jul 26, 2025, 11:23 AM
