90* Mjic-Fem Metric Soft Seal 9199-06-L10-16

Specifications

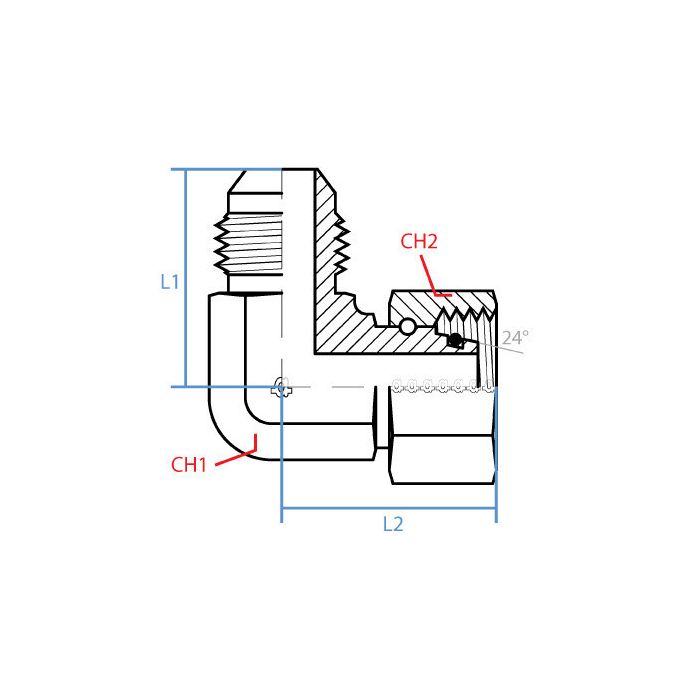

CH1 Width 14mm	CH2 Width 19mm	L1 Length 30mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022267, Alternate Part Number MINO-03671X63642	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-06-L10-16	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work for connecting a 3/8" JIC male to an M16 X 1.5 female DIN tube?

Question by: Eddie H on Aug 5, 2025, 2:24 PM

Yes, this Adaptall fitting is designed to connect a 3/8" JIC male fitting to an M16 X 1.5 female DIN tube.

Answer by: Customer Support on Aug 7, 2025, 11:37 AM

fitting's got a male JIC on one end and metric female on the other, that right? just trying to make sure before i order

Question by: Judy M on May 21, 2025, 2:38 PM

Correct on both counts. The JIC side is a 3/8" male with a 9/16-18 UNF thread. The other end is a female DIN tube connection at M16 x 1.5. So if you're bridging a standard JIC line over to a metric DIN tube port, this is the piece that does it.

Answer by: Customer Support on May 22, 2025, 6:09 PM

trying to match up fittings here, is this the one with a 3/8 JIC male on one end and M16 x 1.5 female metric on the other?

Question by: Donna C on Jun 17, 2025, 8:16 AM

For fit confirmation, the ends are a male JIC 3/8 inch with a 9/16-18 UNF thread on side 1, and a female DIN tube connection with an M16 x 1.5 thread on side 2.

Answer by: Customer Support on Jun 18, 2025, 9:08 PM
