90* Mjic-Fem Metric Soft Seal

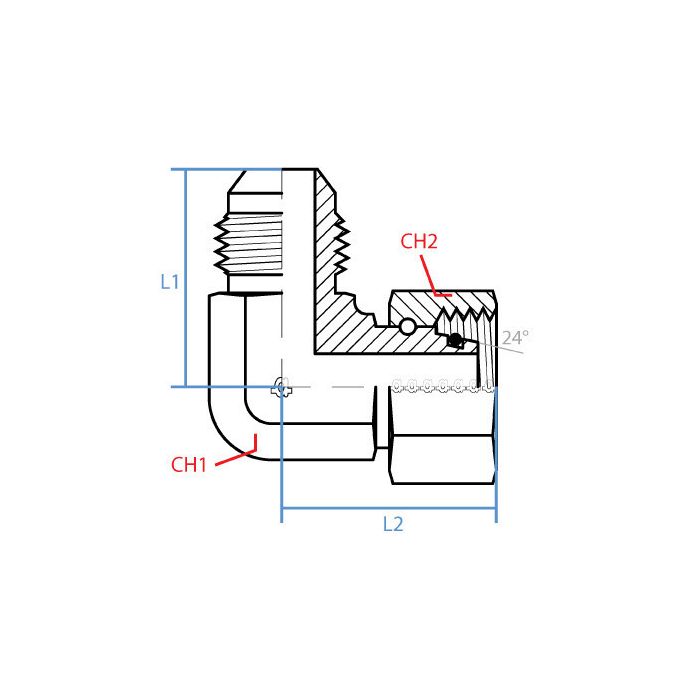

CH1 Width 14mm	CH2 Width 17mm	L1 Length 27.5mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022266, Alternate Part Number MINO-03671X65321	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-06-L08-14	Product Weight 0.13 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got a 9/16-18 JIC male on one end and M14 x 1.5 female DIN on the other -- that right?

Question by: Sherry M on Jul 21, 2025, 9:32 PM

Correct on both counts. The male JIC side runs 9/16-18 UNF, which corresponds to a 3/8" JIC size, and the opposite end is a female M14 x 1.5 DIN tube connection. That combination is exactly what makes this fitting useful when you're bridging a standard SAE 37-degree flare line over to a metric DIN tube system.

Answer by: Customer Support on Jul 23, 2025, 6:39 AM
