90* Mjic-Fem Metric Soft Seal 9199-04-S06-14

Specifications

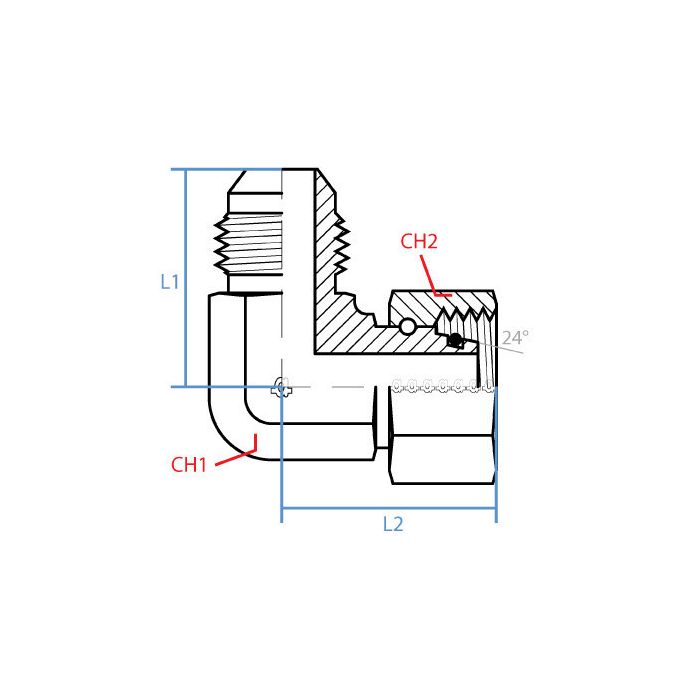

CH1 Width 14mm	CH2 Width 17mm	L1 Length 26.9mm	L2 Length 26.9mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size S06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022265, Alternate Part Number MINO-03671X98665	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-04-S06-14	Product Weight 0.14 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up if I'm using it for a hydraulic system on some heavy equipment?

Question by: Brent R on Dec 4, 2025, 11:59 AM

Constructed from steel, this fitting is designed for durability and resistance to wear in industrial applications.

Answer by: Customer Support on Dec 6, 2025, 9:08 AM

Got a hydraulic line coming off a pump that needs to make a hard turn in a real tight spot. The metric side is M14 x 1.5 and the other end has to connect to a 7/16-20 JIC fitting. This elbow gonna work for that?

Question by: Dustin A on Sep 24, 2025, 3:01 PM

that setup matches up exactly. One end is a 7/16-20 UNF male JIC and the other is an M14 x 1.5 female DIN tube connection, so you've got both sides covered. The 90-degree angle is what handles that hard turn without having to force the line into a bend. At just under 27mm on both length dimensions, it fits into tighter assemblies without a lot of clearance needed around it.

Answer by: Customer Support on Sep 26, 2025, 6:59 AM
