90* Mjic-Fem Metric Soft Seal

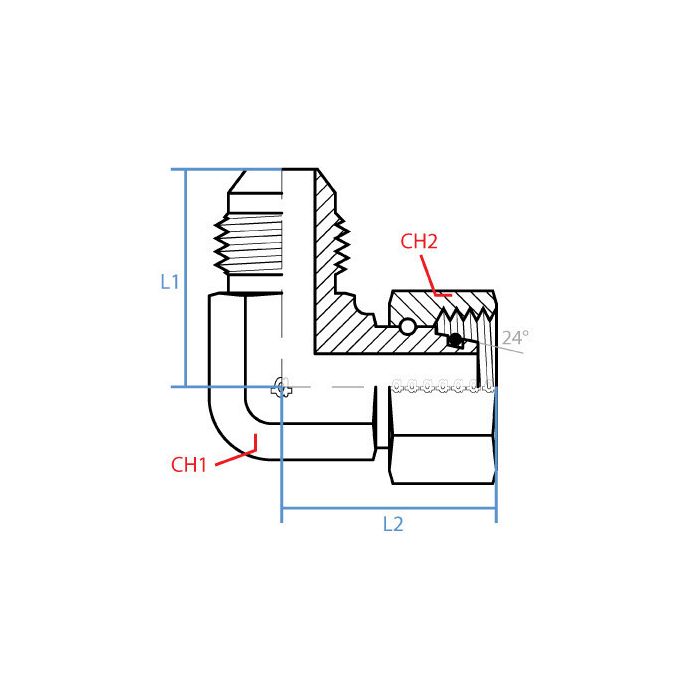

CH1 Width 14mm	CH2 Width 14mm	L1 Length 28.8mm	L2 Length 26.9mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender F	Side 2 Size L06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022262, Alternate Part Number MINO-03671X65455	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9199-04-L06-12	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running M12 x 1.5 DIN tube on one end and JIC on the other -- does this fitting bridge that gap in a 90 degree configuration?

Question by: Roy M on Jan 5, 2026, 11:51 AM

That's what this one does. One end is a 7/16-20 UNF male JIC and the other is an M12 x 1.5 female DIN tube, all in a 90 degree elbow shape. Steel construction, so it holds up well in industrial hydraulic and pneumatic setups. No adapters or extra hardware needed to make the connection work.

Answer by: Customer Support on Jan 6, 2026, 9:40 PM
