Mjic-Fem Metric Soft Seal

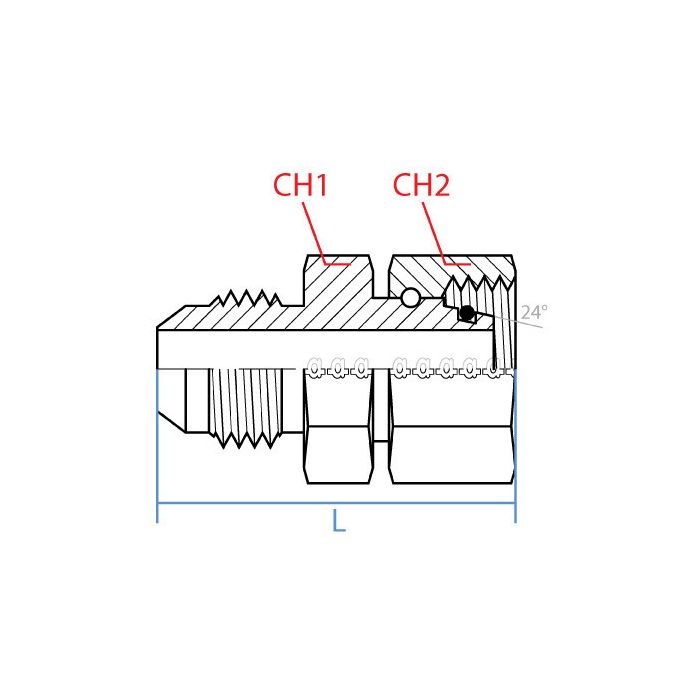

CH1 Width 50mm	CH2 Width 60mm	L Length 73.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender F	Side 2 Size S38	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07464257, Alternate Part Number MINO-03671X00233	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-24-S38-52	Product Weight 1.50 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this here adapter work with standard JIC fittings?

Question by: Howard H on Oct 28, 2025, 10:41 AM

This Adaptall adapter features a male JIC type on one side, measuring 1-1/2", so it will indeed work with standard JIC fittings of the appropriate size.

Answer by: Customer Support on Oct 30, 2025, 6:30 AM
