Mjic-Fem Metric Soft Seal

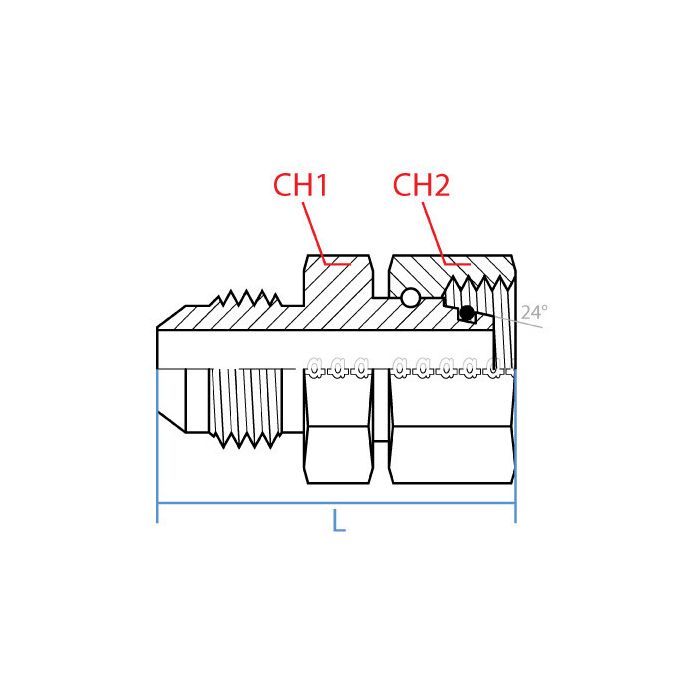

CH1 Width 50mm	CH2 Width 60mm	L Length 71.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender F	Side 2 Size L42	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07464256, Alternate Part Number MINO-03671X00232	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-24-L42-52	Product Weight 1.51 lbs

Product Questions & Answers 1

Product Questions & Answers

adapter's got a 1-1/2 JIC male on one end and some kind of metric female on the other -- what exactly is the metric side connecting to?

Question by: Phil F on Nov 18, 2025, 2:30 PM

The metric end on this adapter is an M52 X 2.0 female DIN tube connection, sized at L42. That's a standard metric soft seal fitting used in European-style hydraulic systems, so if you've got a DIN tube line running L42 tubing, this is what bridges it over to a 1-7/8-12 UN male JIC side. Pretty common setup when you're mixing domestic JIC hydraulic connections with imported equipment that uses metric DIN fittings.

Answer by: Customer Support on Nov 19, 2025, 2:42 PM
