Mjic-Fem Metric Soft Seal

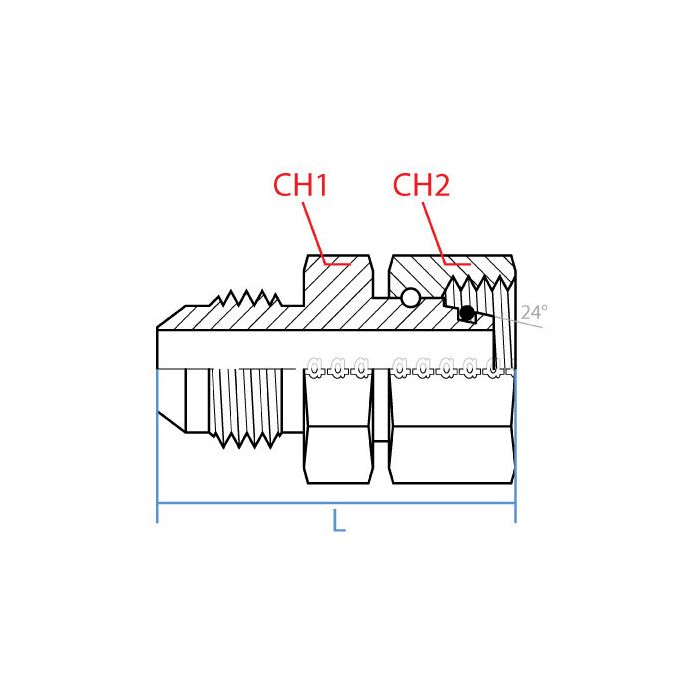

CH1 Width 46mm	CH2 Width 50mm	L Length 66.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M42 X 2.0	Side 2 Gender F	Side 2 Size S30	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07464255, Alternate Part Number MINO-03671X00231	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-20-S30-42	Product Weight 1.16 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a metric tube fitting on one end of my line and need to mate it up to a JIC male on the other side. this the right piece for that job?

Question by: Chad R on Oct 24, 2025, 10:31 AM

That's the situation this adapter is built for. One end is a male JIC fitting at 1-1/4 inch with a 1-5/8 - 12 UN thread, and the other end is a female DIN tube fitting sized at S30 with an M42 x 2.0 thread. Steel construction throughout, straight configuration, so if your line runs those two connection types, this bridges them cleanly without any awkward routing.

Answer by: Customer Support on Oct 25, 2025, 6:03 PM

Is this here MJIC to DIN deal a straight shot, or does it have some kinda bend to it?

Question by: Lance H on May 1, 2025, 3:25 PM

It's a straight adapter, so no bends or angles.

Answer by: Customer Support on May 3, 2025, 6:13 AM
