Mjic-Fem Metric Soft Seal

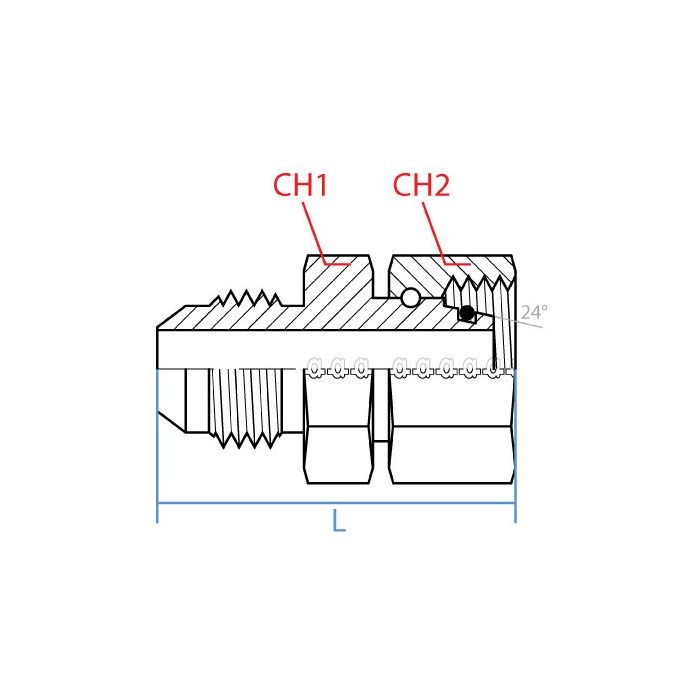

CH1 Width 46mm	CH2 Width 50mm	L Length 67mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M45 X 2.0	Side 2 Gender F	Side 2 Size L35	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07464254, Alternate Part Number MINO-03671X00230	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-20-L35-45	Product Weight 1.09 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 1-1/4 inch JIC male fitting on one end and need to tie into a metric DIN tube port on the other side -- this the right adapter for that?

Question by: Ross J on Oct 23, 2025, 8:15 PM

Yeah, that's exactly what this one's built for. One end is a 1-5/8-12 UN male JIC thread, which corresponds to a 1-1/4 inch JIC size, and the other end is a female M45 x 2.0 DIN tube connection sized for L35 tube. Straight body, no angle, so it's a direct in-line connection between those two thread types.

Answer by: Customer Support on Oct 24, 2025, 8:16 PM
