Mjic-Fem Metric Soft Seal

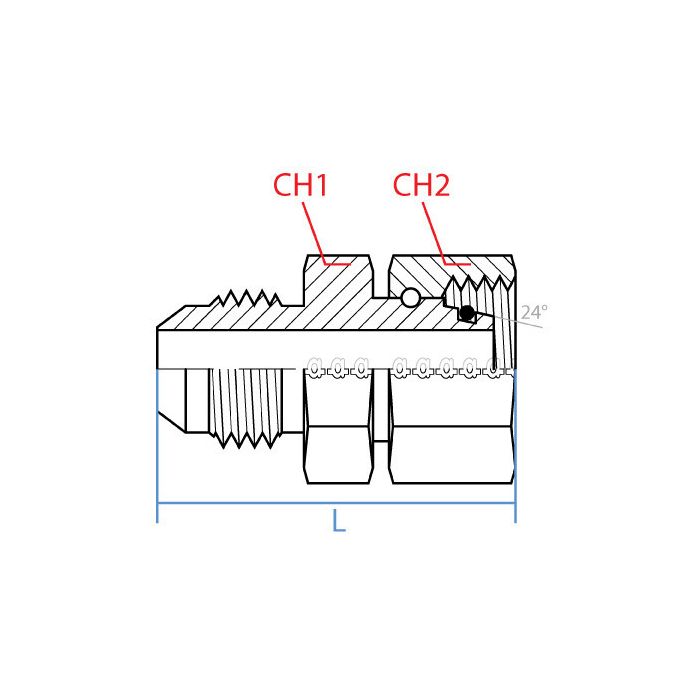

CH1 Width 36mm	CH2 Width 41mm	L Length 60.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size L28	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137941, Alternate Part Number MINO-03671X47445	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-16-L28-36	Product Weight 0.64 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end that’s JIC male 1-5/16-12, will this mate up to a metric standpipe with M36 x 2.0 on the other side?

Question by: Ralph S on Dec 21, 2025, 1:02 PM

For tying a 37 degree flare connection into a metric tube port, this fitting is a straight adapter with JIC male 1-5/16 - 12 UN on one end and a DIN tube female M36 x 2.0 (L28) on the other.

Answer by: Customer Support on Dec 23, 2025, 12:51 PM
