Mjic-Fem Metric Soft Seal

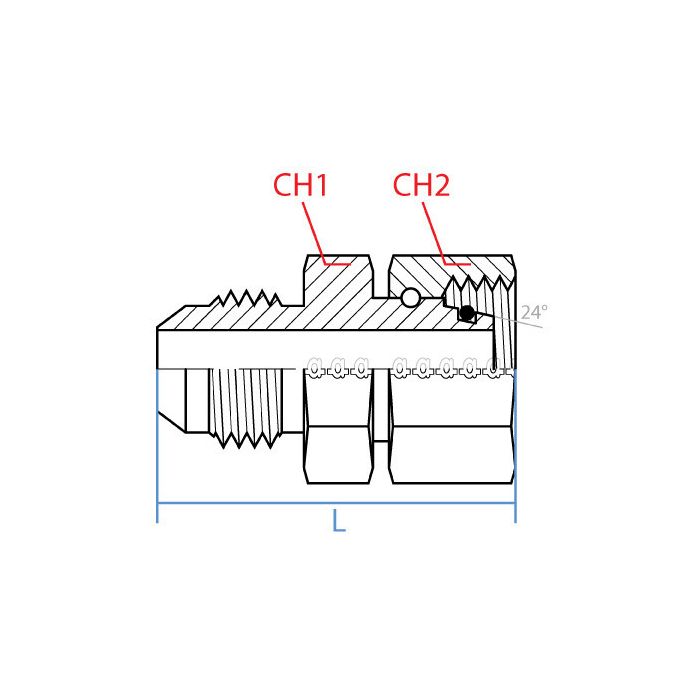

CH1 Width 27mm	CH2 Width 36mm	L Length 64.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size S20	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-06189424, Alternate Part Number MINO-03671X90004	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-12-S20-30	Product Weight 0.58 lbs

Product Questions & Answers 1

Product Questions & Answers

adapter goes from JIC male to metric female, that right? trying to bridge two different systems on a hydraulic line and want to make sure i got the right part before i order

Question by: Chad J on May 14, 2025, 4:19 PM

Correct on both counts. One end is a 3/4" JIC male fitting with a 1-1/16-12 UN thread, and the other end accepts an M30 x 2.0 female DIN tube fitting. So yeah, it bridges a standard JIC line over to a metric DIN connection in one straight adapter. No thread sealant needed and no ratcheting issues to deal with during install either.

Answer by: Customer Support on May 16, 2025, 10:14 AM
