Mjic-Fem Metric Soft Seal

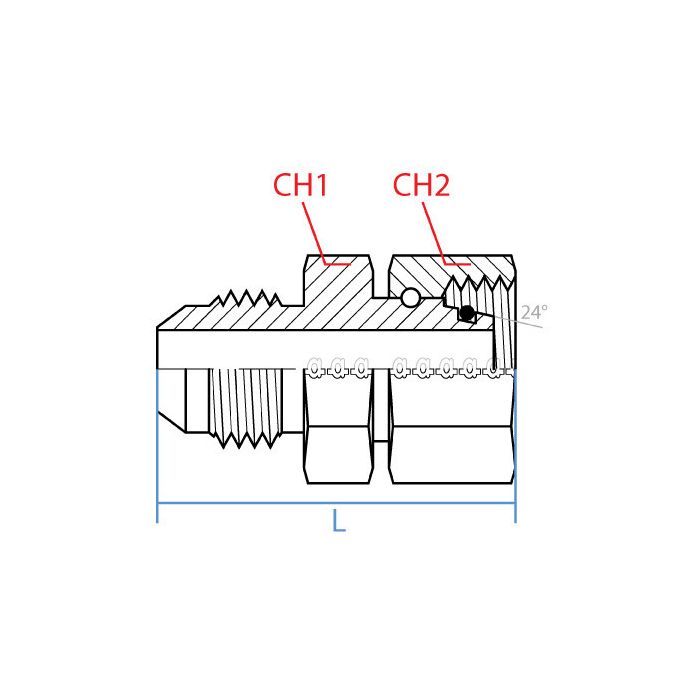

CH1 Width 27mm	CH2 Width 32mm	L Length 56.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender F	Side 2 Size L18	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137939, Alternate Part Number MINO-03671X47479	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-12-L18-26	Product Weight 0.43 lbs

Product Questions & Answers 1

Product Questions & Answers

does this thing need any thread tape or sealant to get a good seal, or is it good to go as-is?

Question by: Clint E on Dec 8, 2025, 11:52 AM

No additional sealant or thread tape is needed. The soft seal design on the female DIN Tube end handles the sealing on its own, so you can make up the connection without any extra prep on that side. The male JIC end seals on the 37-degree flare seat the way standard JIC fittings do, which also doesn't require sealant. Just make sure both mating surfaces are clean and in good shape before assembly.

Answer by: Customer Support on Dec 9, 2025, 2:40 PM
