Mjic-Fem Metric Soft Seal 9197-10-S16-24

Specifications

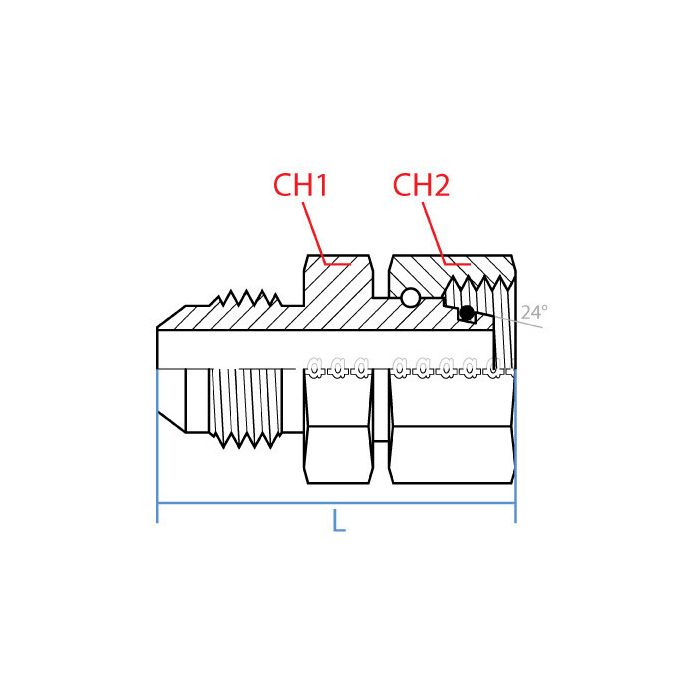

CH1 Width 24mm	CH2 Width 30mm	L Length 52.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07202152, Alternate Part Number MINO-03671X10022	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-10-S16-24	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook up a metric DIN tube fitting to a JIC line, this the right piece for that?

Question by: Lee B on Jan 28, 2026, 3:48 PM

That's what this adapter is built for. One end is a 7/8-14 UNF male JIC and the other is an M24 x 1.5 female DIN tube, so it bridges those two thread standards in a single straight connector. The DIN side carries a soft seal, which handles the sealing on the metric end without needing extra components. Steel construction, 52.1mm overall length, and it goes in clean without any additional hardware required.

Answer by: Customer Support on Jan 30, 2026, 1:28 PM

Will this fitting work if I'm connecting a 7/8-14 UNF male JIC to an M24 X 1.5 female DIN tube?

Question by: Howard R on May 13, 2025, 9:06 PM

Yes, this Adaptall fitting is designed to connect a 7/8 - 14 UNF male JIC to an M24 X 1.5 female DIN tube, making it suitable for such connections.

Answer by: Customer Support on May 14, 2025, 9:28 PM
