Mjic-Fem Metric Soft Seal

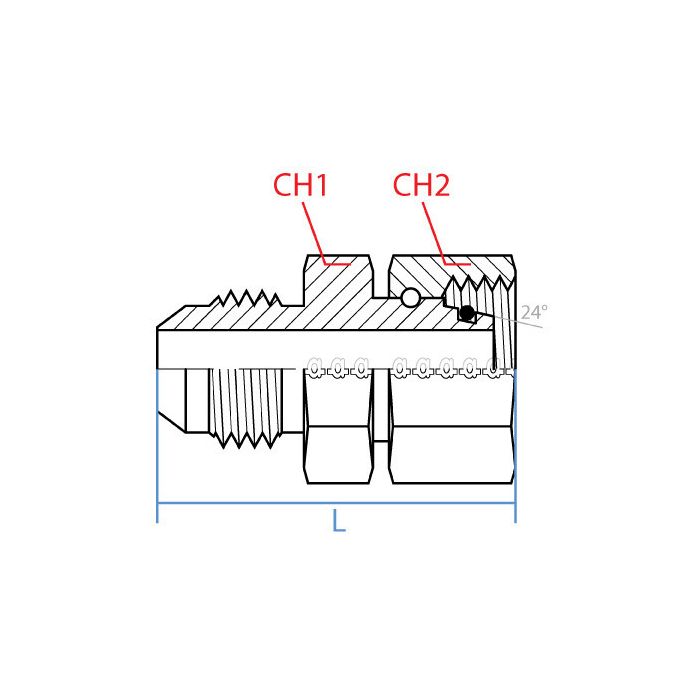

CH1 Width 24mm	CH2 Width 27mm	L Length 52mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137937, Alternate Part Number MINO-03671X64715	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-10-L15-22	Product Weight 0.29 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 7/8-14 UNF male JIC fitting on one end of my line and need to tie into a metric DIN tube port at M22 x 1.5, this the right piece for that?

Question by: Rusty S on May 29, 2025, 2:40 PM

That's what this adapter is built for. One end is a male JIC at 7/8-14 UNF with a 5/8" size, and the other is a female DIN tube connection at M22 x 1.5 in the L15 series. Steel construction, straight configuration, so it drops right in between those two connection types without needing any thread sealant or extra hardware to make it work.

Answer by: Customer Support on May 30, 2025, 6:03 PM
