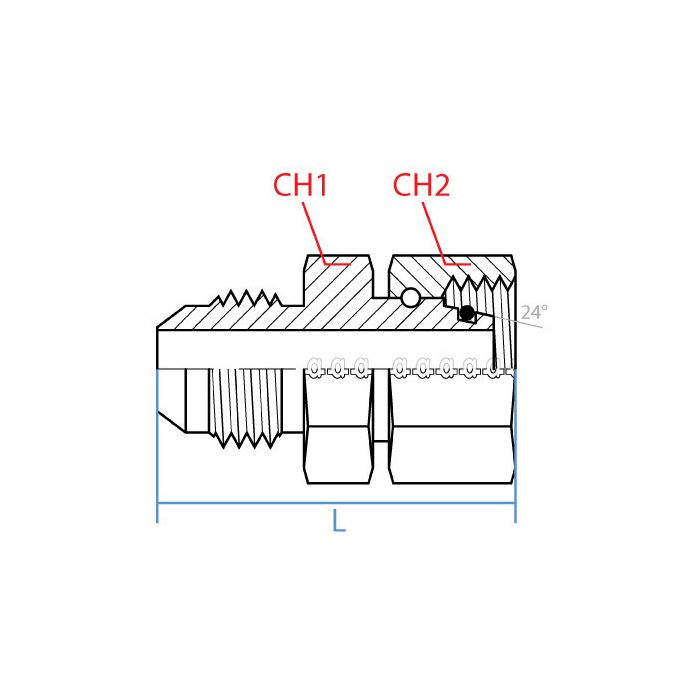

Mjic-Fem Metric Soft Seal

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-08-S16-24	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a DIN tube line running M24 x 1.5 and need to tie into a JIC fitting on a pump port, this the right adapter for that?

Question by: Daryl P on Jan 2, 2026, 7:43 AM

That setup is exactly what this fitting handles. One end is a 3/4-16 UNF JIC male at 1/2 inch, and the other is an M24 x 1.5 DIN tube female. Steel construction, straight body, soft seal on the metric side. If your tube and port match those specs, you're good to go.

Answer by: Customer Support on Jan 4, 2026, 7:41 AM

Will this fitting hold up if I'm using it for a hydraulic press?

Question by: Phil W on Dec 1, 2025, 6:47 PM

This steel fitting is crafted to handle demanding industrial environments, so it should be suitable for hydraulic press applications, providing a secure and leak-proof seal.

Answer by: Customer Support on Dec 3, 2025, 11:11 AM
