Mjic-Fem Metric Soft Seal

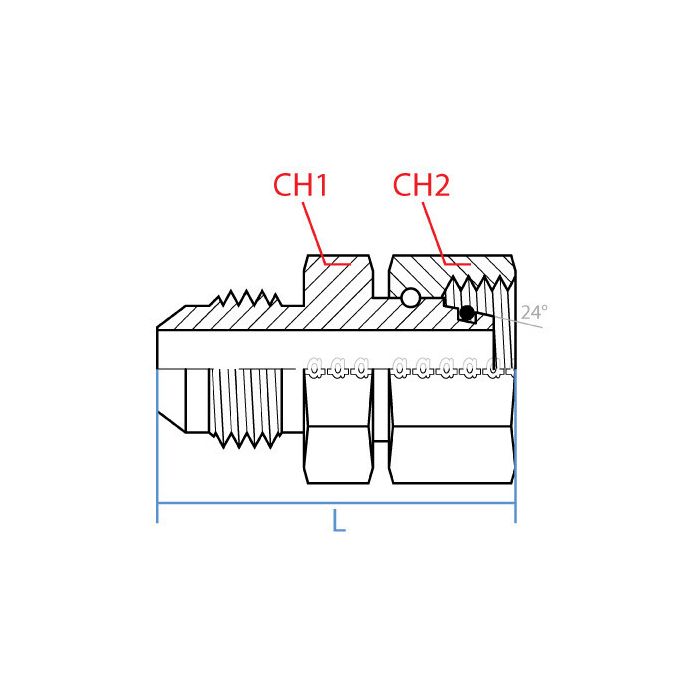

CH1 Width 19mm	CH2 Width 24mm	L Length 47.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07033784, Alternate Part Number MINO-03671X78748	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-08-S12-20	Product Weight 0.19 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric port on my hydraulic manifold that needs to tie into a JIC line, this the kind of fitting that bridges that gap?

Question by: Duane G on Sep 5, 2025, 11:26 AM

Straight connection between a 3/4-16 UNF male JIC on one end and an M20 x 1.5 female DIN tube fitting on the other is exactly what this adapter handles. The JIC side uses a 37-degree flare seat, which is standard for that thread size, and the metric soft seal end uses a DIN tube configuration. Steel construction keeps it solid under the kinds of pressures you'd expect in a working hydraulic circuit. At just under 48mm total length, it fits without a lot of extra reach in tight hydraulic connections runs.

Answer by: Customer Support on Sep 6, 2025, 5:26 PM
