Mjic-Fem Metric Soft Seal

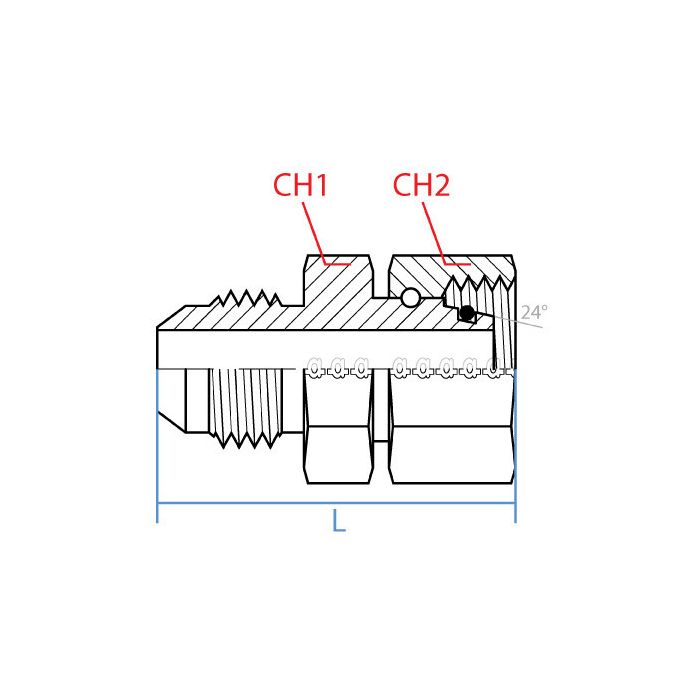

CH1 Width 19mm	CH2 Width 22mm	L Length 45.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender F	Side 2 Size L12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137935, Alternate Part Number MINO-03671X46441	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-08-L12-18	Product Weight 0.17 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 3/4-16 UNF male fitting on one end and need to hook into an M18 x 1.5 female DIN tube port on the other, is this the right adapter for that?

Question by: Carl C on Jan 5, 2026, 9:53 PM

That's what this one does. One end is a 3/4-16 UNF male JIC, and the other is an M18 x 1.5 female DIN tube connection. Steel construction, straight body, no adjustable ends or check valves in the mix. Pretty straightforward drop-in adapter for crossing over between those two fitting standards.

Answer by: Customer Support on Jan 7, 2026, 3:01 PM
