Mjic-Fem Metric Soft Seal

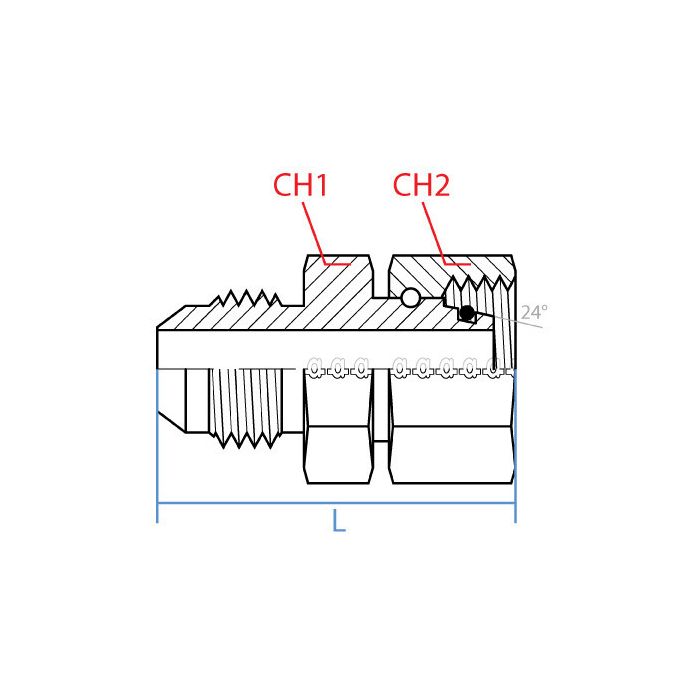

CH1 Width 17mm	CH2 Width 19mm	L Length 44.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size S08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07464252, Alternate Part Number MINO-03671X00228	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-06-S08-16	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric DIN tube port on a manifold that needs to connect to a 3/8 JIC male line. this fitting gonna bridge that gap or am i lookin at the wrong part?

Question by: Norm M on Dec 24, 2025, 9:27 AM

That's exactly what this one's built for. One end is a 3/8" JIC male with a 9/16-18 UNF thread, and the other is a female metric DIN tube port at M16 x 1.5. Steel construction, straight configuration, so if your manifold port matches that M16 x 1.5 spec and your line runs 3/8" JIC, you've got yourself a match.

Answer by: Customer Support on Dec 25, 2025, 10:32 AM
