Mjic-Fem Metric Soft Seal

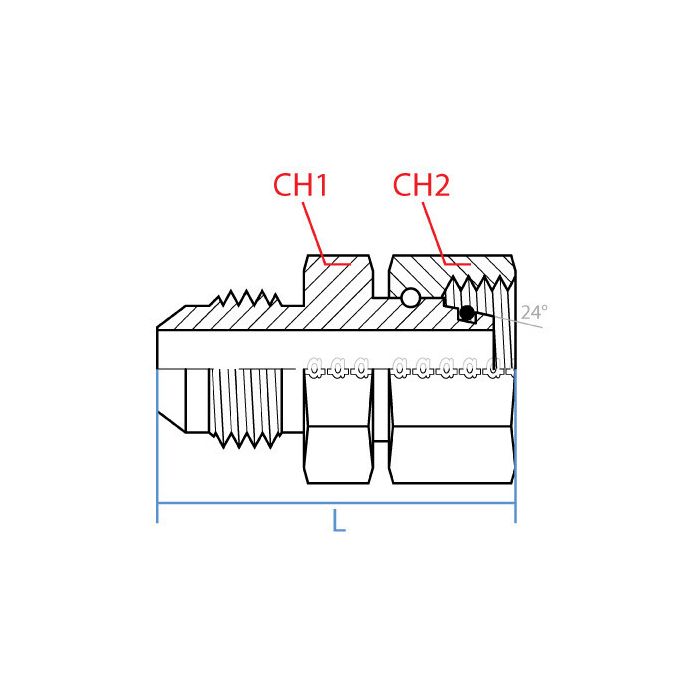

CH1 Width 17mm	CH2 Width 19mm	L Length 42.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number C1MM62, Alternate Part Number MI-07137934, Alternate Part Number MINO-03671X78484	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-06-L10-16	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric fitting on my equipment and need to tie into a JIC line, this straight adapter, it's gonna handle that without me having to mess with extra hardware or valves, right?

Question by: Curt L on Aug 13, 2025, 9:12 AM

Correct setup for exactly that situation. One end is a 3/8" male JIC running a 9/16-18 UNF thread, and the other is a female M16 x 1.5 DIN tube connection. No check valves, no adjustments needed. It's a straight-through adapter, so you're connecting those two standards directly with nothing extra in the way.

Answer by: Customer Support on Aug 15, 2025, 6:39 AM
