Mjic-Fem Metric Soft Seal

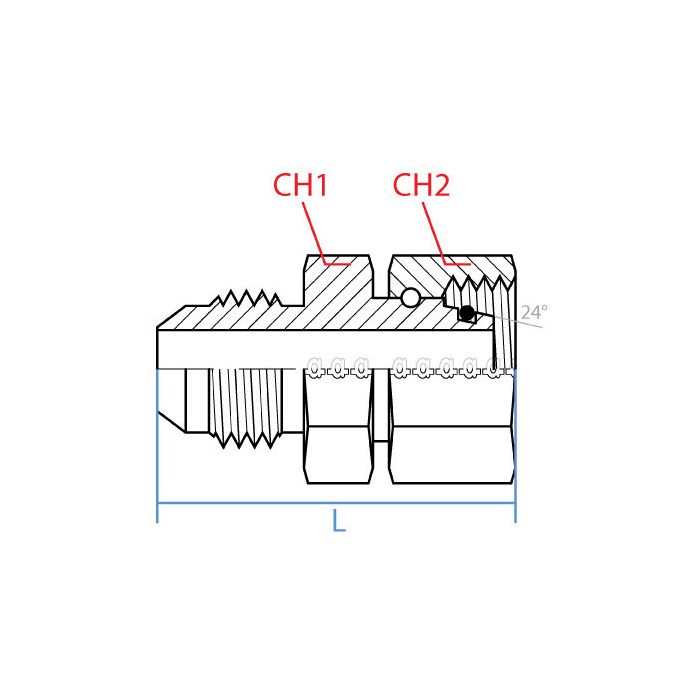

CH1 Width 17mm	CH2 Width 17mm	L Length 40.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137932, Alternate Part Number MINO-03671X41445	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-06-L08-14	Product Weight 0.02 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric DIN tube end on my equipment and need to connect it to a JIC fitting, this straight adapter the right call for that?

Question by: Lance P on Oct 19, 2025, 4:44 PM

For a straight connection between a 9/16-18 UNF male JIC side and an M14 x 1.5 female DIN tube end, this is exactly what bridges that gap. The soft seal on the metric end handles the sealing at the DIN tube connection, which is standard practice for metric fittings of this type. Both wrench flats measure 17mm, and the overall length comes in at 40.8mm, so it fits in tighter hydraulic connections layouts without much hassle. Steel construction holds up well in typical industrial hydraulic lines.

Answer by: Customer Support on Oct 21, 2025, 1:05 PM
