Mjic-Fem Metric Soft Seal

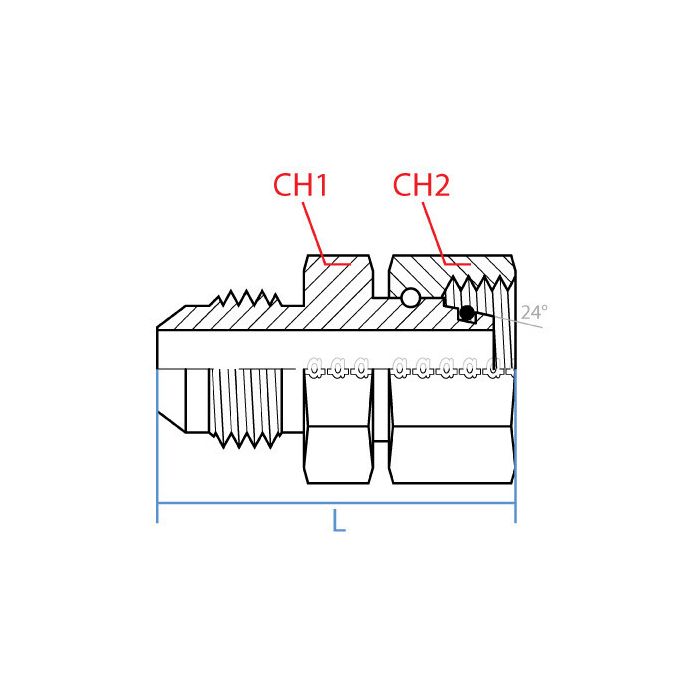

CH1 Width 14mm	CH2 Width 17mm	L Length 43.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size S06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07464251, Alternate Part Number MINO-03671X00227	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-04-S06-14	Product Weight 0.01 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric DIN tube fitting on one end and a JIC on the other side of my line - will this adapter bridge those two together?

Question by: Tommy B on Jan 9, 2026, 6:27 PM

That's what this one's built for. One end is a 7/16-20 UNF male JIC connection, which is your 1/4" JIC side, and the other end is an M14 x 1.5 female DIN tube port. Steel construction keeps it solid in industrial use, and the straight profile makes the installation pretty clean without needing extra hardware or adjustment.

Answer by: Customer Support on Jan 11, 2026, 6:34 AM
