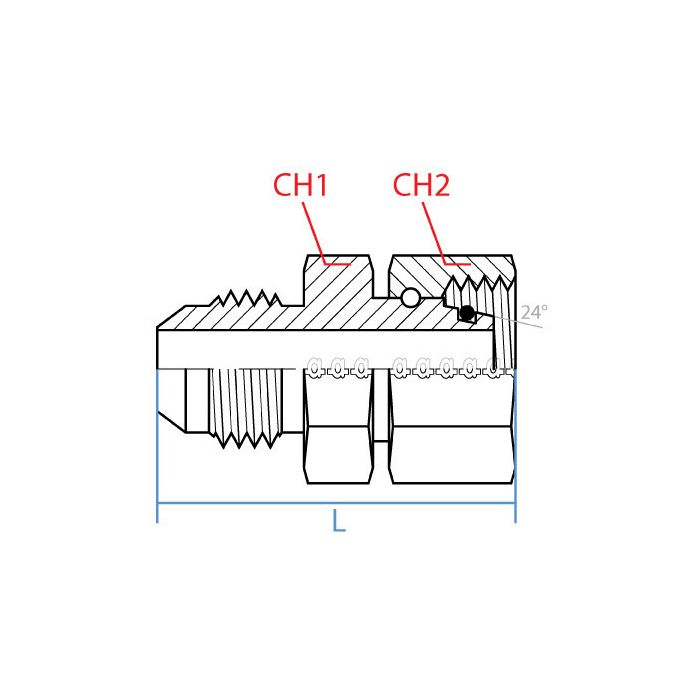

Mjic-Fem Metric Soft Seal 9197-04-L08-14

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-04-L08-14	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting work to hook up a JIC line to something with a metric thread?

Question by: Todd E on Aug 5, 2025, 9:15 AM

Designed for hydraulic systems needing a JIC-to-metric transition, this adapter features a soft seal on the DIN side, ensuring a reliable, leak-resistant connection.

Answer by: Customer Support on Aug 6, 2025, 1:04 PM

Got a line coming off a European-built power unit with an M14 x 1.5 port and I need to tie into a JIC fitting on the other end. This the right piece for that?

Question by: Lance B on Oct 11, 2025, 1:54 PM

That's what this adapter is built for. One end is a 1/4" male JIC with a 7/16-20 UNF thread, and the other is a female DIN tube port running M14 x 1.5 metric. The soft seal on the DIN side handles the leak resistance without depending on pure metal-to-metal contact, so you get a solid, reliable connection between those two different thread standards. Steel construction, straight configuration, so it drops right in line without any angular offset.

Answer by: Customer Support on Oct 13, 2025, 6:34 AM

trying to hook a 1/4 jic male line into a metric din port, is this the right adapter?

Question by: Harvey P on Dec 3, 2025, 10:49 AM

For a JIC to metric transition, it matches a 1/4 inch male JIC end with 7/16-20 UNF threads on one side and a female DIN tube port with M14 x 1.5 threads on the other.

Answer by: Customer Support on Dec 4, 2025, 11:13 AM
