Mjic-Fem Metric Soft Seal

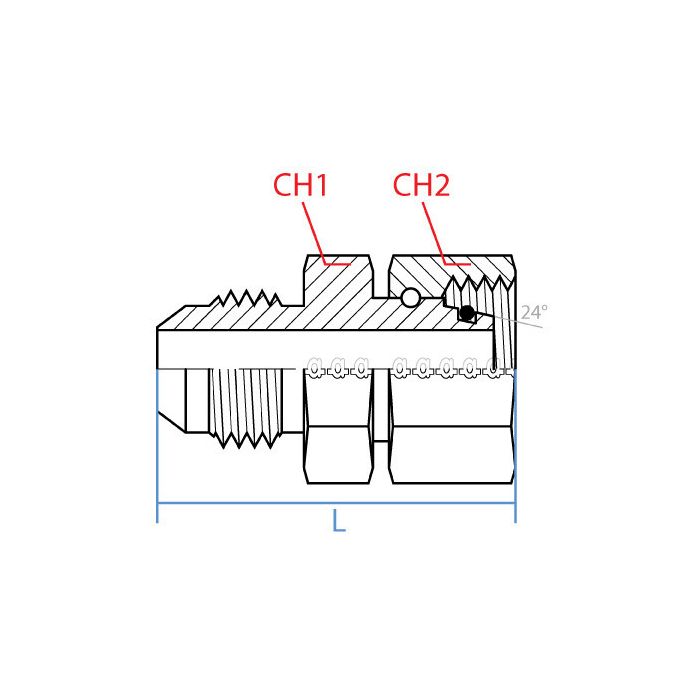

CH1 Width 14mm	CH2 Width 14mm	L Length 39.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender F	Side 2 Size L06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137931, Alternate Part Number MINO-03671X46914	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-04-L06-12	Product Weight 0.06 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric female DIN tube port on one end and need to tie it into a JIC line, this the kind of fitting that bridges that gap?

Question by: Hugh T on May 22, 2025, 10:27 AM

That's what this one's built for. One end is a 7/16-20 UNF male JIC connection and the other is an M12 x 1.5 female DIN tube port. Steel construction, straight body, 39.7mm long with 14mm wrench flats on both ends. If your setup has those two thread types that need to talk to each other, this fitting handles that transition without any adapters in between.

Answer by: Customer Support on May 24, 2025, 6:22 AM
