Male Jic X Metric Branch Tee 9169-06-06-14

Specifications

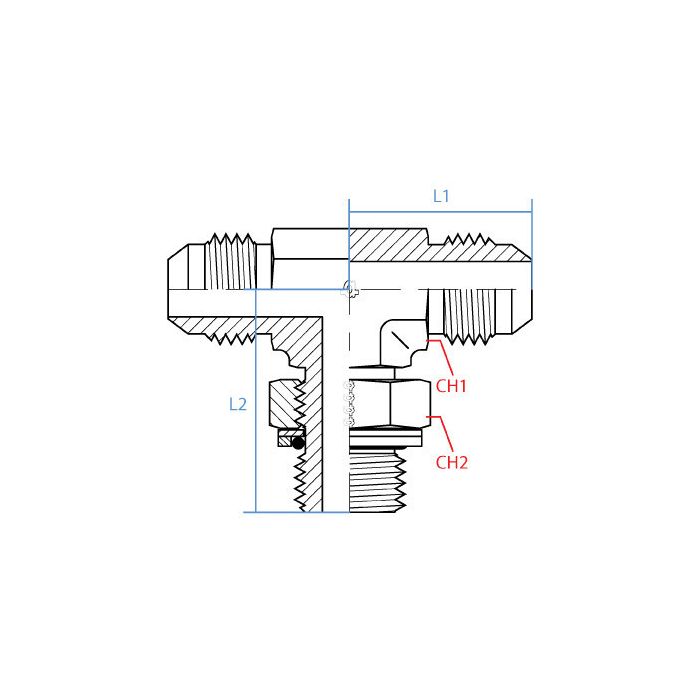

CH1 Width 14mm	CH2 Width 19mm	L1 Length 27mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Jic	Side 3 Callout M14 X 1.5	Side 3 Gender M	Side 3 Size 14mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9169-06-06-14	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tee off a line with two 3/8 JIC males and a metric branch, is that what this is?

Question by: Rick S on Mar 31, 2026, 7:05 AM

Built as a branch tee, it has two JIC male ends that are 9/16-18 UNF (3/8 size) plus one metric male branch that is M14 x 1.5 (14 mm). That setup lets you split or add a branch line where you need JIC on the run and metric on the branch.

Answer by: Customer Support on Apr 1, 2026, 8:50 PM

Will this tee handle the pressures in my hydraulic system, or do I need something heavy-duty?

Question by: Judy G on Jun 6, 2025, 3:50 PM

This tee, constructed from robust steel, is well-suited for demanding industrial environments, offering high resistance to wear and tear within typical hydraulic pressure ranges.

Answer by: Customer Support on Jun 8, 2025, 8:01 AM

got a metric port on my manifold that's M14 x 1.5 and need to branch off to two JIC lines, this tee gonna work for that?

Question by: Curt M on Sep 27, 2025, 4:08 PM

That's what this fitting is built for. The branch port is M14 x 1.5 male metric, and the two run ports are both 9/16-18 UNF JIC male at 3/8" size. So you'd be connecting the metric side into whatever female metric port you have on the manifold, and running your two JIC lines off the other ends. Steel construction, so it'll hold up in a working hydraulic setup without any fuss.

Answer by: Customer Support on Sep 29, 2025, 10:29 AM
