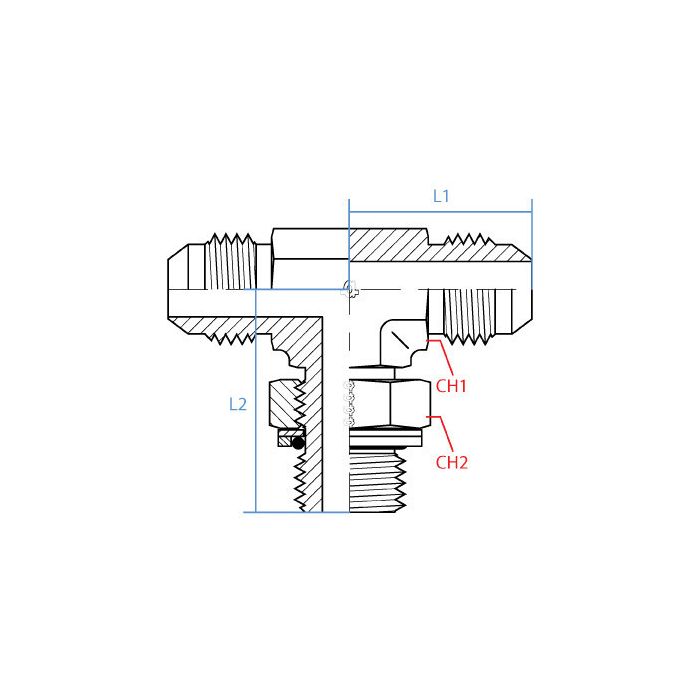

Male Jic X Metric Branch Tee

CH1 Width 14mm	CH2 Width 17mm	L1 Length 25mm	L2 Length 29mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Jic	Side 3 Callout M12 X 1.5	Side 3 Gender M	Side 3 Size 12mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9169-04-04-12	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

So this thing will let me hook up a metric line to a JIC line, right? Just wanna make sure I'm understanding it right.

Question by: Wayne R on Mar 29, 2026, 6:59 AM

Yes, that's precisely the purpose. This tee fitting is designed to connect two 1/4" Male JIC ports (7/16-20 UNF) with a 12mm Male Metric branch port (M12 x 1.5), providing a reliable transition between the two thread standards.

Answer by: Customer Support on Mar 30, 2026, 2:00 PM
