Male Jic X Metric Branch Tee 9169-04-04-10

Specifications

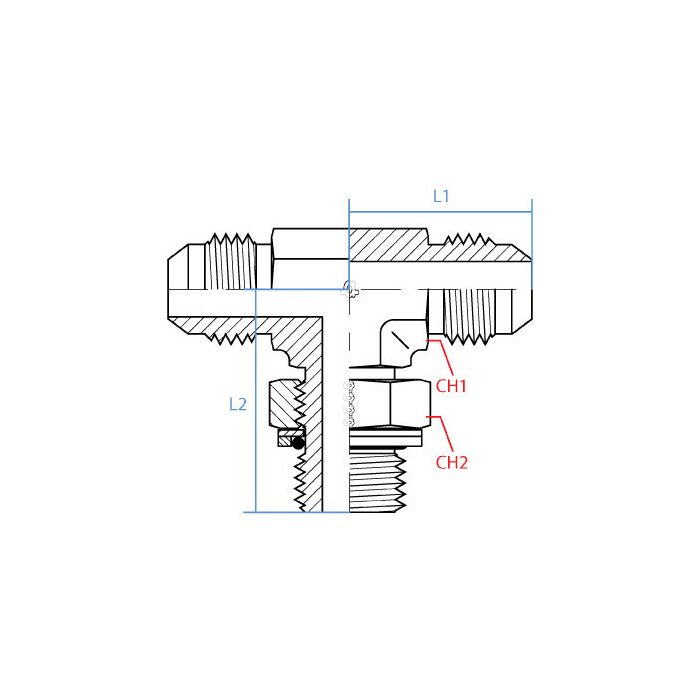

CH1 Width 12mm	CH2 Width 14mm	L1 Length 23mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Jic	Side 3 Callout M10 X 1.0	Side 3 Gender M	Side 3 Size 10mm	Side 3 Type METRIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9169-04-04-10	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running 1/4" JIC on both ends but need to tap off to a 10mm metric component, this tee gonna work for that kind of setup?

Question by: Hank L on Jan 5, 2026, 8:28 PM

That's exactly what this fitting is built for. Both inline ports are 1/4" JIC male with 7/16-20 UNF threading, and the branch port comes off at M10 x 1.0 metric male. So you can run your main JIC line straight through sides 1 and 2, then pull a branch off side 3 to your metric-threaded component, all in one piece without stacking extra adapters.

Answer by: Customer Support on Jan 7, 2026, 8:16 AM

So this thing's got both JIC and metric? Just wanna make sure I'm readin' that right before I order.

Question by: Todd M on Feb 24, 2026, 6:04 PM

Yes, this tee fitting does indeed have both JIC and metric connections. Sides 1 and 2 are 1/4" JIC male, while Side 3 is a 10mm metric male port.

Answer by: Customer Support on Feb 26, 2026, 6:47 AM

trying to tee off a 1/4 JIC line to a metric port, is this the one with two 7/16-20 males and a M10x1.0 branch?

Question by: Terry H on May 29, 2025, 8:42 AM

You’ve got the right idea. Sides 1 and 2 are 1/4 inch JIC male with 7/16-20 UNF threads, and the branch side is a 10 mm metric male threaded M10 x 1.0.

Answer by: Customer Support on May 30, 2025, 7:00 PM
