Bspp Male Branch Tee-Male Jic 9159-16-16-16

Specifications

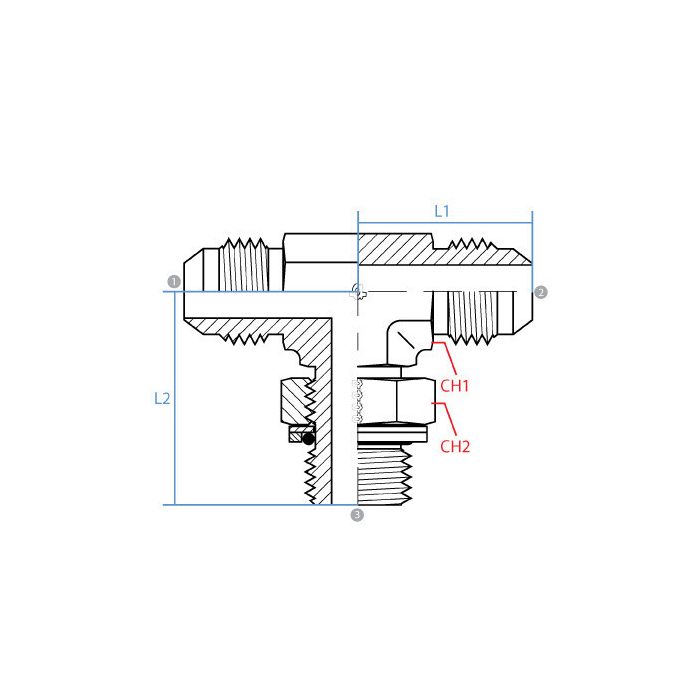

CH1 Width 33mm	CH2 Width 41mm	L1 Length 45.1mm	L2 Length 51.3mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Jic	Side 3 Callout G 1 - 11	Side 3 Gender M	Side 3 Size 1"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9159-16-16-16	Product Weight 1.15 lbs

Product Questions & Answers 3

Product Questions & Answers

got a machine running BSPP ports and need to split off to two JIC lines, this tee gonna work for that?

Question by: Roger T on Jul 25, 2025, 10:39 AM

Yeah, that's exactly the kind of situation this fitting handles. The BSPP male end (G 1-11 thread, 1 inch) goes into your BSPP port, and the two JIC male ends (both 1-5/16-12 UN, 1 inch) let you run out to two separate JIC hose or female swivel connections. Steel construction, so it holds up in typical hydraulic line work. Just make sure your downstream fittings are female JIC to mate up correctly on both branches.

Answer by: Customer Support on Jul 27, 2025, 9:48 AM

Will this tee fitting work alright with regular hydraulic fluid?

Question by: Dale G on Jun 30, 2025, 5:33 PM

This steel tee adapter is designed for hydraulic applications. It features BSPP Male and JIC Male connections, offering a reliable connection point in your hydraulic system.

Answer by: Customer Support on Jul 1, 2025, 9:34 PM

got a tight spot in the hydraulic connections, how big is this tee fitting end to end?

Question by: Rick S on Jul 12, 2025, 7:37 AM

For overall size, it’s 45.1 mm on L1 and 51.3 mm on L2, with wrench flats (Ch1 and Ch2) at 33 mm and 41 mm.

Answer by: Customer Support on Jul 14, 2025, 7:45 AM
