Bspp Male Branch Tee-Male Jic

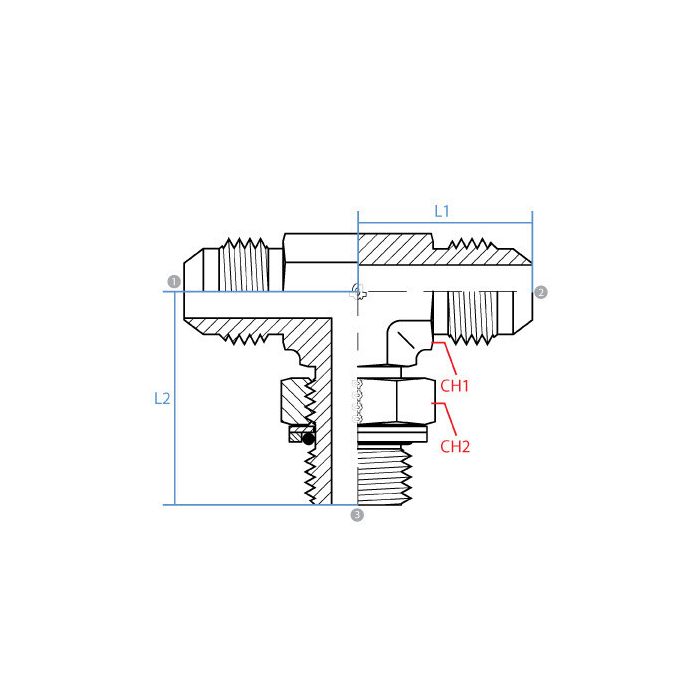

CH1 Width 14mm	CH2 Width 19mm	L1 Length 27mm	L2 Length 32mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Jic	Side 3 Callout G 1/4 - 19	Side 3 Gender M	Side 3 Size 1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9159-04-04-04	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

got two hoses with 7/16-20 jic ends and need to tee off to a G 1/4 port, is that what this fitting does?

Question by: Keith S on Apr 25, 2025, 10:11 AM

For tying two 1/4 inch male JIC connections into a third 1/4 inch BSPP male connection, this tee matches that setup. The two JIC sides are 7/16-20 UNF male, and the branch is G 1/4-19 BSPP male.

Answer by: Customer Support on Apr 27, 2025, 7:01 AM
