90*Bspp Adjustable Elbow- Fnpt 9135-12-12

Specifications

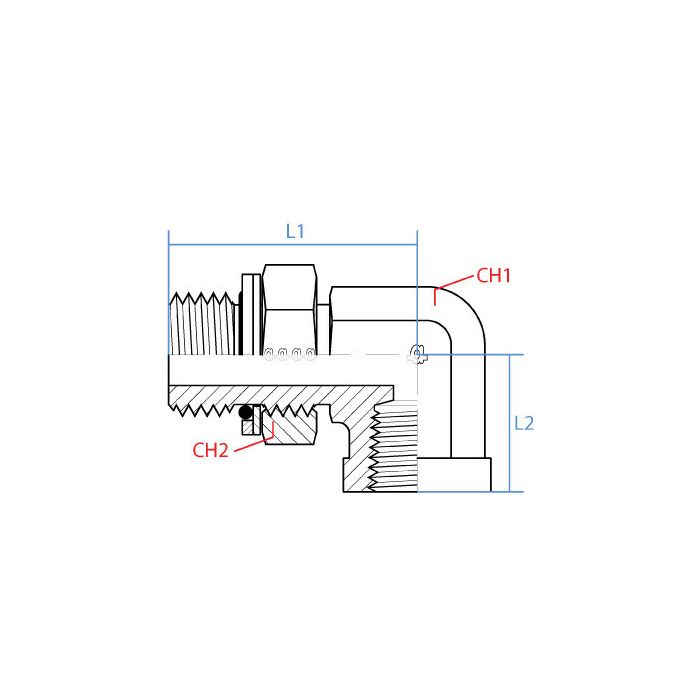

CH1 Width 33mm	CH2 Width 36mm	L1 Length 51mm	L2 Length 34.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9135-12-12	Product Weight 0.79 lbs

Product Questions & Answers 3

Product Questions & Answers

Hey, will this here elbow fitting hold up okay outside?

Question by: Lance L on Sep 29, 2025, 4:54 PM

This steel elbow fitting is suitable for hydraulic applications. Its durability in specific outdoor conditions would depend on factors like exposure to corrosive elements and operating pressures, but the steel construction should offer decent resistance.

Answer by: Customer Support on Oct 1, 2025, 1:49 PM

Got a piece of equipment with a BSPP port and I need to tie into a line that's NPTF threaded, will this fitting bridge that gap?

Question by: Patty F on Apr 17, 2025, 3:23 PM

Yeah, that's exactly what this one's built for. One side is a G 3/4-14 BSPP male and the other is a 3/4-14 NPTF female, so it connects those two thread types at a 90-degree angle. Both sides are 3/4 inch, and the whole thing is steel construction. If your port sizes and thread types match up, you're good to go.

Answer by: Customer Support on Apr 19, 2025, 9:58 AM

trying to hook a bspP line to an npt port, is this the elbow that does that?

Question by: Floyd M on Oct 27, 2025, 10:10 AM

For adapting between those two thread styles, it’s a 90 degree steel elbow with a G 3/4 - 14 BSPP male on one end and a 3/4 - 14 NPTF female on the other, so it bridges BSPP to NPT in a single fitting.

Answer by: Customer Support on Oct 29, 2025, 6:11 AM
