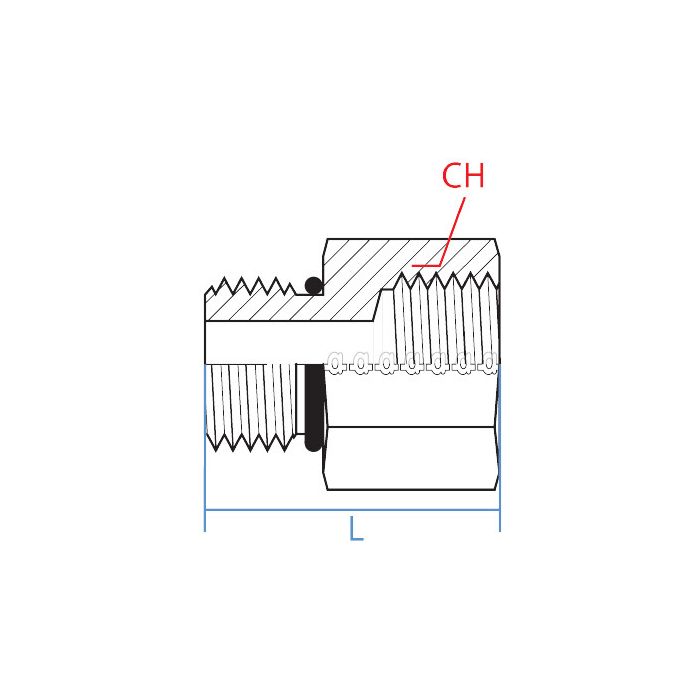

Male Orb X Female Bspp

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orb-Sae	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9120-08-08	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment that's got a SAE port on one end and a BSPP port on the other, will this adapter actually bridge those two without needing some kind of conversion block?

Question by: Harvey J on Dec 7, 2025, 8:49 PM

That's what this fitting handles. One side is a 3/4-16 UNF male ORB thread, which is your SAE standard, and the other side is a G 1/2-14 female BSPP thread. Straight body, steel construction, so you're getting a direct connection between those two standards without any intermediate hardware. Pretty common situation in mixed-spec hydraulic circuits, and this adapter is built for just that pairing.

Answer by: Customer Support on Dec 9, 2025, 6:42 AM

Will this fitting hold up in a hydraulic system running around 2500 PSI?

Question by: Tony W on Aug 30, 2025, 6:37 PM

Constructed from steel, this adapter can certainly handle hydraulic systems operating at moderate to high pressures, making 2500 PSI well within its capabilities.

Answer by: Customer Support on Sep 1, 2025, 1:16 PM
