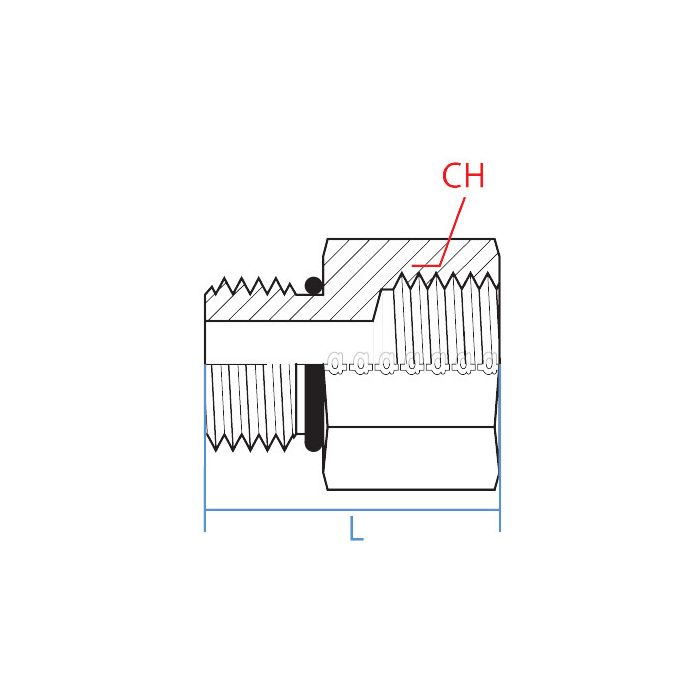

Male Orb X Female Bspp

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orb-Sae	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9120-06-04	Product Weight 0.09 lbs

Product Questions & Answers 1

Product Questions & Answers

What thread types does this fitting connect on each end?

Question by: Chad W on Nov 22, 2025, 2:04 PM

One side runs a 9/16-18 UNF male ORB-SAE thread at 3/8" size, and the other side is a G 1/4-19 female BSPP thread at 1/4" size. Straight configuration, steel construction. Good solid fitting for bridging those two thread standards in a hydraulic line.

Answer by: Customer Support on Nov 23, 2025, 5:00 PM
