Adaptall Din X Male Metric W/Es Seal 5068S-25-33

Specifications

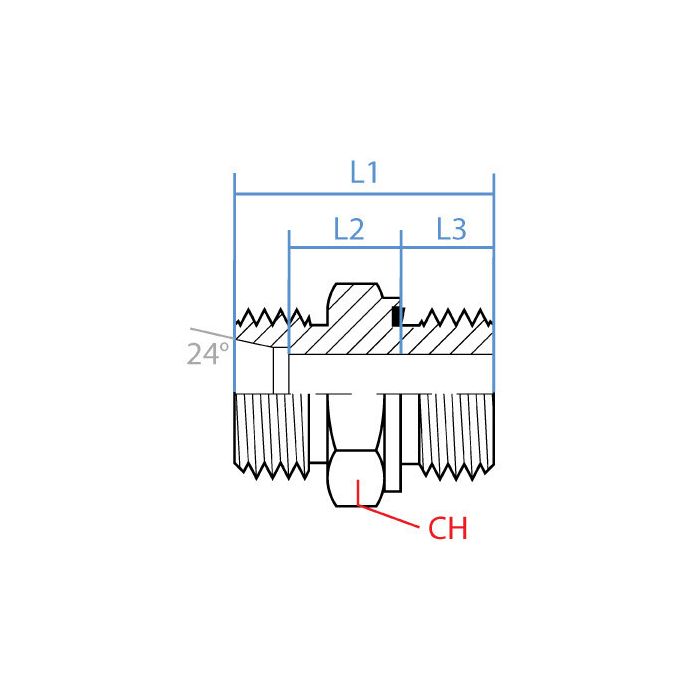

CH Width 41mm	L1 Length 53mm	L2 Length 23mm	L3 Length 18mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M33 X 2.0	Side 2 Gender M	Side 2 Size 33mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068S-25-33	Product Weight 0.60 lbs

Product Questions & Answers 2

Product Questions & Answers

i’ve got a DIN tube end that’s M36 x 2.0 (S25). is this the right adapter to step over to an M33 x 2.0 male metric thread?

Question by: Rod P on Sep 8, 2025, 9:34 PM

On the DIN side it matches an M36 x 2.0 DIN tube end in size S25, and the other side is an M33 x 2.0 male metric thread. It’s a straight steel adapter, so it’s meant to make that exact DIN-to-metric threaded connection.

Answer by: Customer Support on Sep 10, 2025, 6:03 AM

got a DIN tube end on one side of my line and a male metric port on the other, this the kind of fitting that bridges those two thread types?

Question by: Vince F on Dec 25, 2025, 5:24 PM

Exactly what it's built for. One end is an M36 x 2.0 DIN tube connection (Size S25) and the other is an M33 x 2.0 male metric thread, so it connects those two standards in a straight run. The ES seal is included to keep the joint tight under real hydraulic working conditions. Steel construction throughout, so it holds up in the kind of installations where you need something that won't back down.

Answer by: Customer Support on Dec 27, 2025, 6:50 AM
