Male Run Swivel Bspp Tee

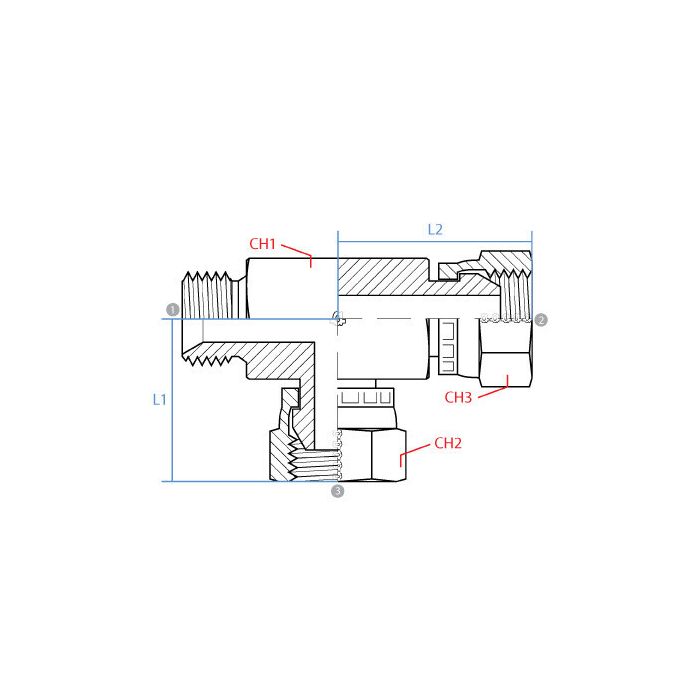

CH1 Width 14mm	CH2 Width 19mm	L1 Length 29mm	L2 Length 28mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Side 3 Callout G 1/4 - 19	Side 3 Gender F	Side 3 Size 1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9095-04-04-04	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to split one 1/4 BSPP line into two, is this tee the right style for that?

Question by: Harold M on Dec 24, 2025, 9:20 PM

For a simple split, it matches that setup. It is a tee with one male G 1/4 - 19 on one side and two female G 1/4 - 19 ports on the other sides, all BSPP.

Answer by: Customer Support on Dec 26, 2025, 1:43 PM

How tight should I make these fittings when I'm hooking them up?

Question by: Joyce Y on May 4, 2025, 3:54 PM

These fittings should be tightened appropriately based on standard hydraulic fitting torque practices. It's important to ensure a secure seal without over-tightening, which could damage the threads.

Answer by: Customer Support on May 6, 2025, 6:53 AM
