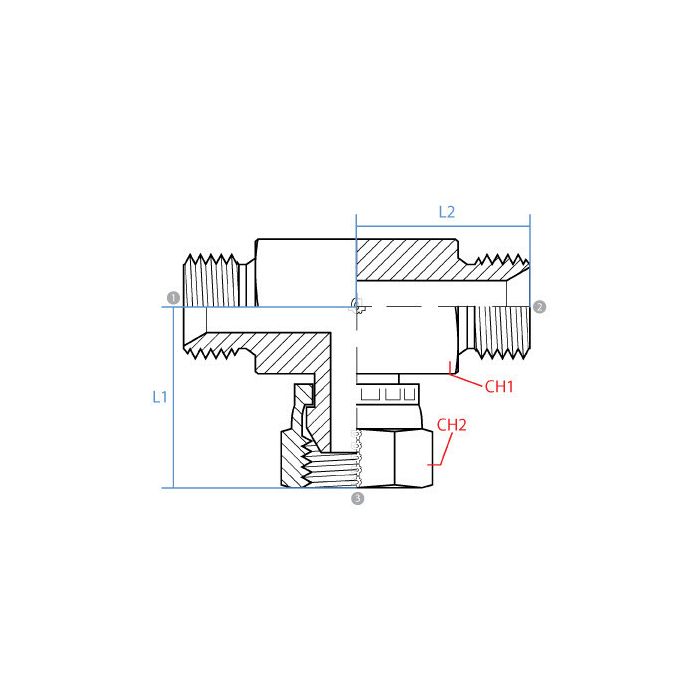

Female Bspp Branch Tee 9087-20-20-20

Specifications

CH1 Width 51mm	CH2 Width 50mm	L1 Length 49mm	L2 Length 56.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Side 3 Callout G 1-1/4 - 11	Side 3 Gender F	Side 3 Size 1-1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9087-20-20-20	Product Weight 2.20 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to branch off a 1-1/4 bsp line, is this tee the one with two male ends and a female side port?

Question by: Ross G on Oct 8, 2025, 3:31 PM

Built as a three-way branch tee, it has two inline male BSPP ports and one female BSPP port on the branch. All three connections are G 1-1/4 - 11, so the thread size stays consistent across the run and the takeoff.

Answer by: Customer Support on Oct 9, 2025, 9:04 PM

All three ports on this thing are 1-1/4", does that include the branch side too, or just the inline ports?

Question by: Carl C on May 3, 2025, 7:50 AM

All three connections run the same G 1-1/4 - 11 BSPP thread size. The two inline ports are male and the branch port is female, but the thread spec stays consistent across the whole fitting. Makes it a lot easier to drop into an existing line without hunting down reducers or adapters.

Answer by: Customer Support on May 5, 2025, 7:49 AM

What's the width of this tee fitting across the flats, if I need to get a wrench on it?

Question by: Debbie K on Jan 29, 2026, 10:54 AM

You'll find two wrench flats on this tee. One measures 51mm across, and the other is 50mm.

Answer by: Customer Support on Jan 31, 2026, 6:14 AM
