Female Bspp Branch Tee 9087-16-16-16

Specifications

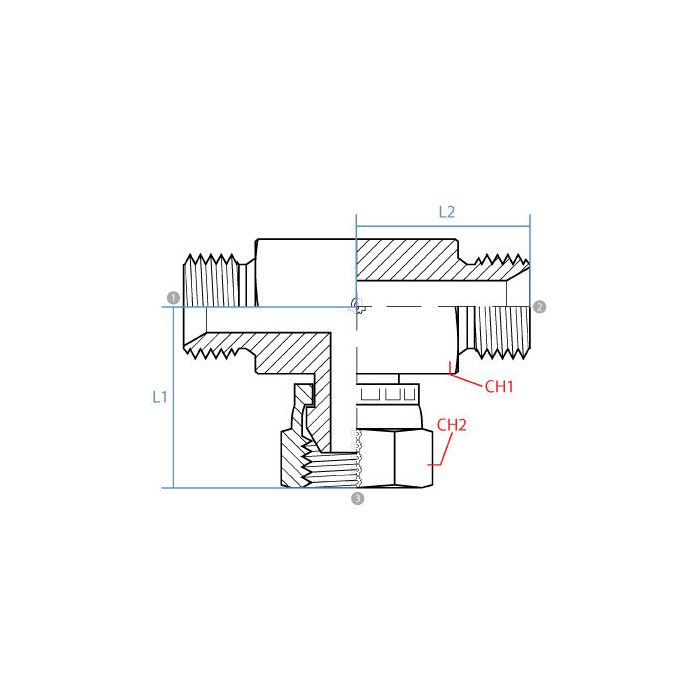

CH1 Width 37mm	CH2 Width 41mm	L1 Length 55mm	L2 Length 46mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Side 3 Callout G 1 - 11	Side 3 Gender F	Side 3 Size 1"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9087-16-16-16	Product Weight 1.30 lbs

Product Questions & Answers 3

Product Questions & Answers

All three ports on this thing are 1 inch BSPP, but which ones are male and which one's the female? Trying to figure out how it'll connect into my existing line before I order.

Question by: Ralph R on Feb 23, 2026, 6:45 PM

Two of the ports are male BSPP connections and the third is female, all at 1 inch with a G 1-11 thread callout. So if you've got a female fitting waiting on the line, it'll mate to one of the male ends, and the female port gives you a spot to thread in a male fitting or adapter on the branch side. Steel construction throughout, tee-shaped body, so the layout is straightforward once you've got it in hand.

Answer by: Customer Support on Feb 25, 2026, 1:37 PM

trying to tie into a 1 inch BSPP run with a branch off it. are all three ports 1" BSPP on this tee?

Question by: Denise E on Jun 6, 2025, 12:11 PM

All three ports are G 1 - 11 BSPP and they are all 1 inch size. Two sides are male and the remaining side is female.

Answer by: Customer Support on Jun 8, 2025, 11:56 AM

What's the deal with the different widths listed? Ch1 and Ch2, are those for wrench sizes?

Question by: Glen F on Nov 2, 2025, 5:28 PM

Those are the Adaptall Ch1 and Ch2 widths, which refer to the wrench flats on the fitting. Ch1 is 37mm wide, while Ch2 measures 41mm.

Answer by: Customer Support on Nov 4, 2025, 3:12 PM
