Female Bspp Branch Tee

CH1 Width 29mm	CH2 Width 32mm	L1 Length 35.5mm	L2 Length 45.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Side 3 Callout G 3/4 - 14	Side 3 Gender F	Side 3 Size 3/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9087-12-12-12	Product Weight 0.75 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the deal with the different widths on this thing? What are CH1 and CH2 for?

Question by: Ross B on Apr 13, 2025, 5:06 PM

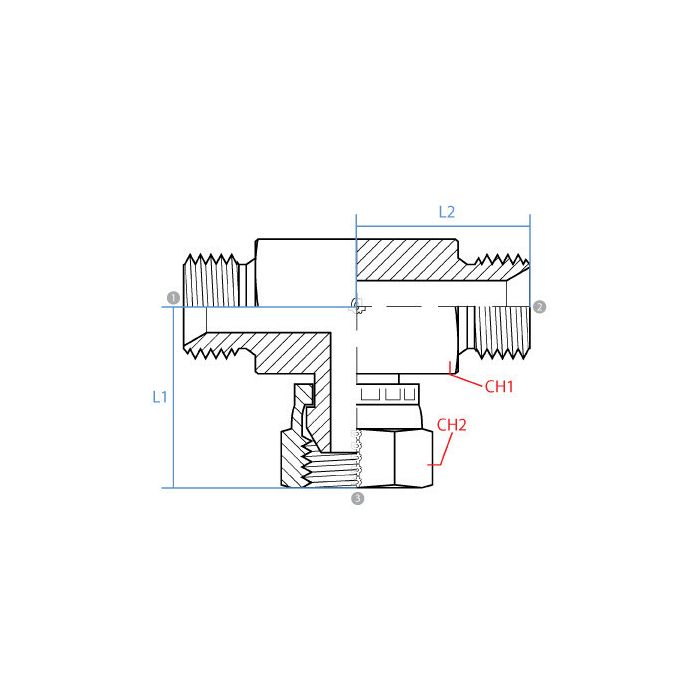

CH1 refers to the width of one of the hex flats, measuring 29mm, while CH2 refers to the width of a different hex flat on the tee, measuring 32mm. They're probably different sizes so you can get a wrench on 'em easier.

Answer by: Customer Support on Apr 15, 2025, 7:17 AM

trying to tee off a 3/4 BSPP line. are all three ports on this one G 3/4-14 or is one different?

Question by: Tommy H on Jan 30, 2026, 5:38 PM

All three connections are the same size and thread callout on this branch tee, G 3/4 - 14 on each port. Two sides are male BSPP and the branch port is female BSPP.

Answer by: Customer Support on Feb 1, 2026, 8:55 AM
