Bsp Female Tee (Fixed) 9086-16-16-16

Specifications

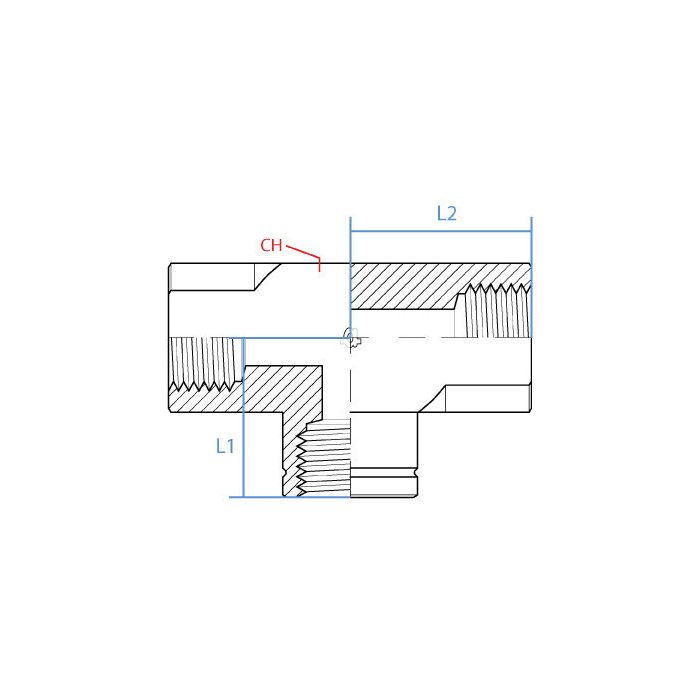

CH Width 44.5mm	L1 Length 41mm	L2 Length 42mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1 - 11	Side 1 Gender F	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Side 3 Callout G 1 - 11	Side 3 Gender F	Side 3 Size 1"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9086-16-16-16	Product Weight 1.75 lbs

Product Questions & Answers 3

Product Questions & Answers

got three ports i need to tee together, are all the ends on this one the same size and thread?

Question by: Donna Y on Oct 6, 2025, 6:21 AM

All three ports are female BSPP and they are the same size. Each side is 1 inch with a G 1 - 11 callout, so you are matching three identical female BSPP connections.

Answer by: Customer Support on Oct 7, 2025, 3:22 PM

All three ports on this thing are 1 inch BSPP female, right? Just want to make sure before I go ordering a bunch of fittings to mate up with it.

Question by: Kirk H on Mar 29, 2026, 1:03 PM

Every port on this tee is the same, a 1 inch female BSPP connection with a G 1 - 11 thread callout on all three sides. So whatever male BSPP fittings you're planning to run into it, you'll need that same spec across the board. No mixing of sizes or thread types here, which actually makes it pretty straightforward when you're putting your order together.

Answer by: Customer Support on Mar 30, 2026, 3:05 PM

Reckon this tee fitting will hold up okay in a hydraulic setup on my farm equipment?

Question by: Wayne R on Jun 14, 2025, 8:37 AM

This Adaptall steel tee is designed for hydraulic applications where you need to split or combine fluid flow reliably.

Answer by: Customer Support on Jun 15, 2025, 2:32 PM
